Description

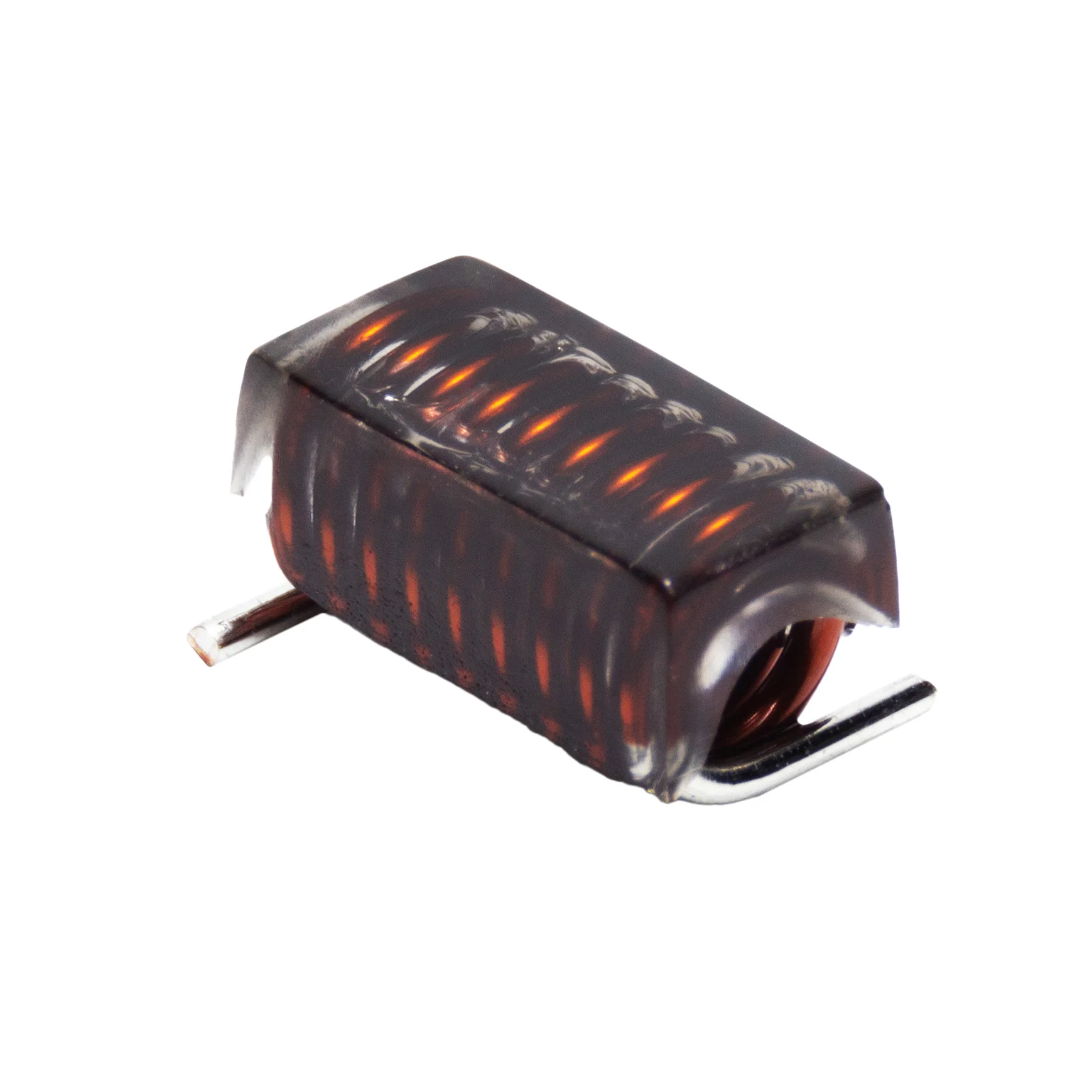

FIXED IND 538NH 2A 90 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AC1060R-R53G.
AC1060R-R53G has an inductance value of 538 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AC1060R-R53G is rated for 2 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AC1060R-R53G lists a DC resistance of 90mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AC1060R-R53G uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AC1060R-R53G to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 538 nH |
| Tolerance | ±2% |
| Current Rating | 2 A |
| DC Resistance (DCR) | 90mOhm Max |
| Saturation Current | - |
| Operating Temperature | -25°C ~ 125°C |
| Dimensions | 0.415" L x 0.250" W (10.55mm x 6.35mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 538NH 2A 90 MOHM SMD |
| Series | AC1060R |
| Product Status | Active |
| Type / Construction | Wirewound |
| Core Material | Air |
| Shielding | Unshielded |
| Q @ Frequency | 87 @ 50MHz |
| Self Resonant Frequency | 490MHz |
| Ratings | - |
| Inductance Test Frequency | 50 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.232" (5.90mm) |
| Features | - |
