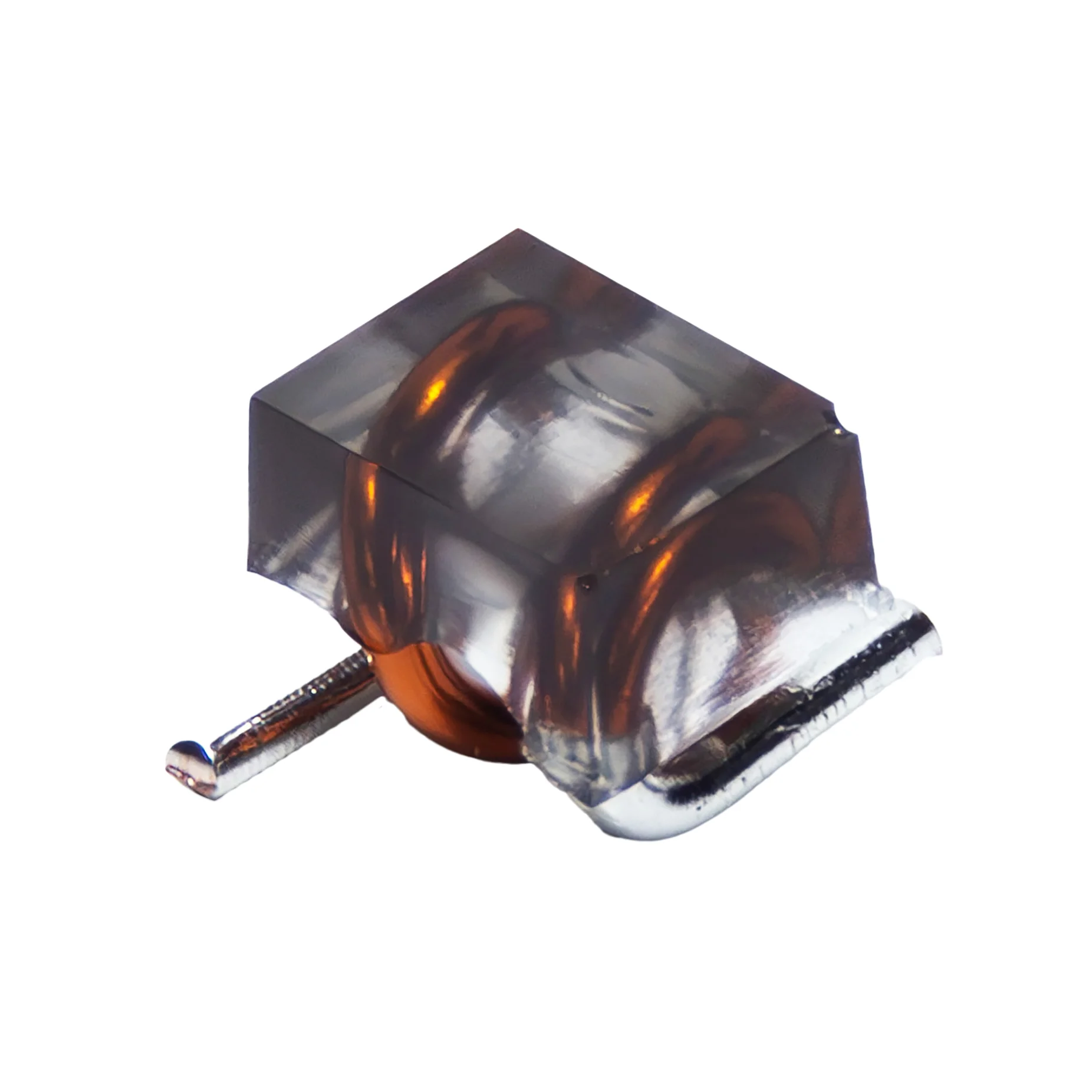

FIXED IND 3.85NH 1.6A 6 MOHM SMD
| Inductance | 3.85 nH |
| Tolerance | ±10% |
| Current Rating | 1.6 A |
| DC Resistance (DCR) | 6mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -25°C ~ 125°C |
| Dimensions | 0.087" L x 0.056" W (2.21mm x 1.42mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 3.85NH 1.6A 6 MOHM SMD |
| Series | AC2213R |
| productStatus | Active |
| typeConstruction | Wirewound |
| coreMaterial | Air |
| shielding | Unshielded |
| qFactor | 100 @ 800MHz |
| selfResonantFreq | 7.5GHz |
| ratings | - |
| testFrequency | 800 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.060" (1.52mm) |
| features | - |
