Description
CAP
Specifications
Inductance
25 nH
Current Rating
4.4 A Max
DC Resistance (DCR)
10 mOhm Max
Parameter Guide

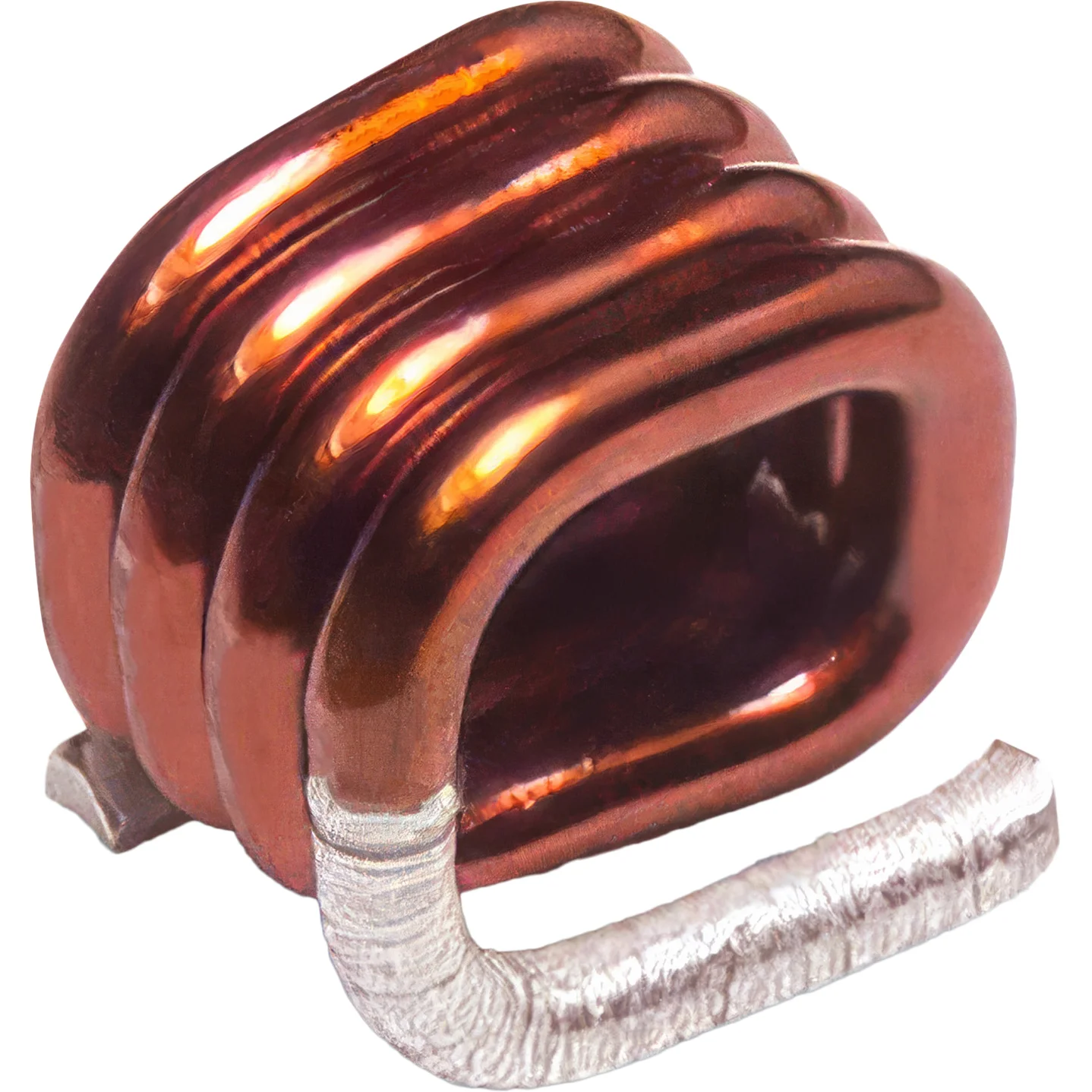

Understand the key electrical and mechanical specifications for AC3018SQ-25NJ.
Inductance
25 nH
AC3018SQ-25NJ has an inductance value of 25 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
Current Rating
4.4 A Max
AC3018SQ-25NJ is rated for 4.4 A Max. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
DC Resistance (DCR)
10 mOhm Max
AC3018SQ-25NJ lists a DC resistance of 10 mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
Explore Related Datasheet Paths
Continue from AC3018SQ-25NJ to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 25 nH |
| Tolerance | ±5% |
| Current Rating | 4.4 A Max |
| DC Resistance (DCR) | 10 mOhm Max |
| Supplier | Bourns Inc. |
| Description | CAP |
| Product Status | Active |
| Q @ Frequency | 130 Min @ 400 MHz |
| Self Resonant Frequency | 2.5 GHz Min |
| Inductance Test Frequency | 400 MHz |
