Description

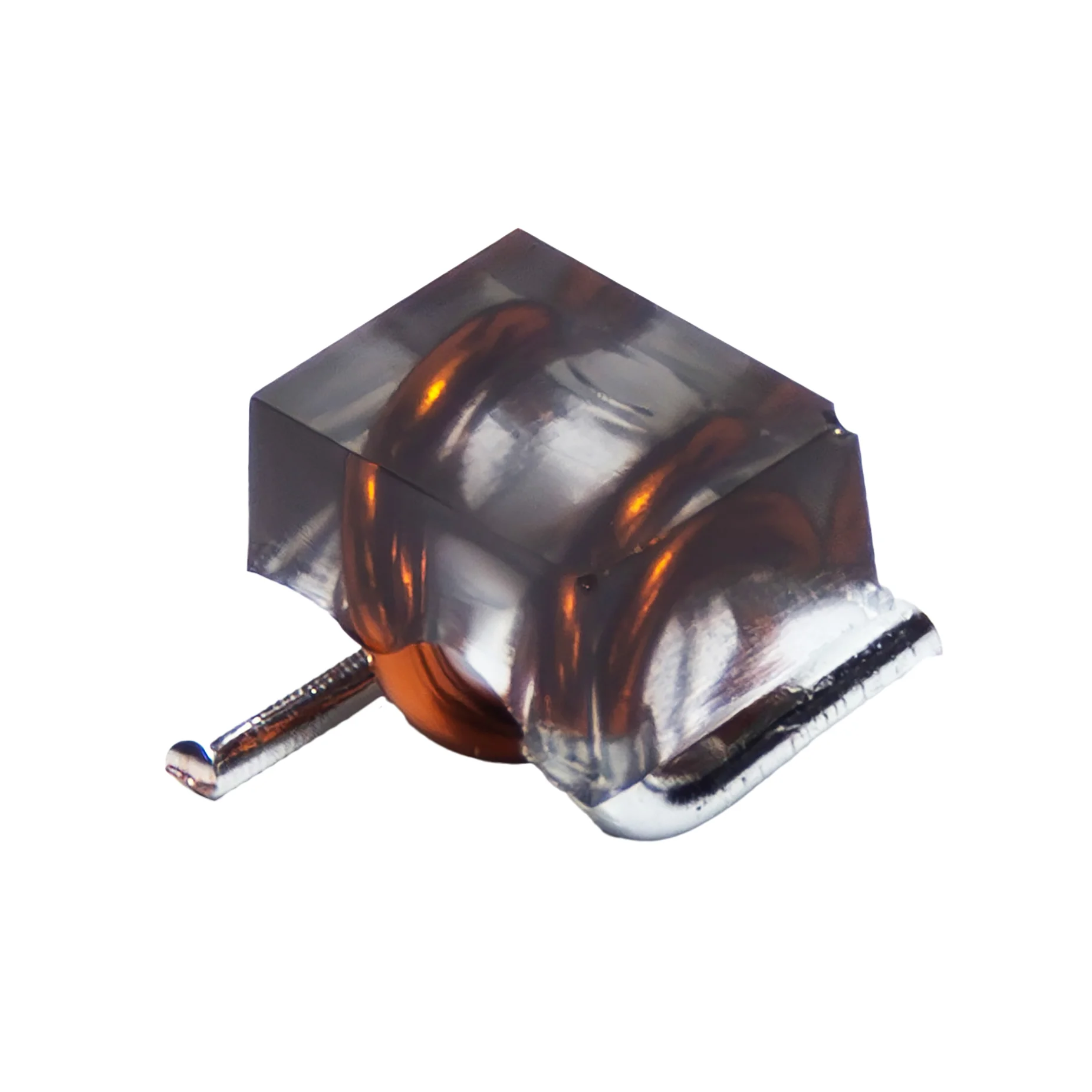

FIXED IND 5NH 4A 1.8 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AC3630R-5N0G.
AC3630R-5N0G has an inductance value of 5 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AC3630R-5N0G is rated for 4 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AC3630R-5N0G lists a DC resistance of 1.8mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AC3630R-5N0G uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AC3630R-5N0G to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 5 nH |
| Tolerance | ±2% |
| Current Rating | 4 A |
| DC Resistance (DCR) | 1.8mOhm Max |
| Operating Temperature | -25°C ~ 125°C |
| Dimensions | 0.145" L x 0.120" W (3.68mm x 3.05mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 5NH 4A 1.8 MOHM SMD |
| Series | AC3630R |
| Product Status | Active |
| Type / Construction | Wirewound |
| Core Material | Air |
| Shielding | Unshielded |
| Q @ Frequency | 140 @ 150MHz |
| Self Resonant Frequency | 6.5GHz |
| Inductance Test Frequency | 150 MHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.125" (3.18mm) |
