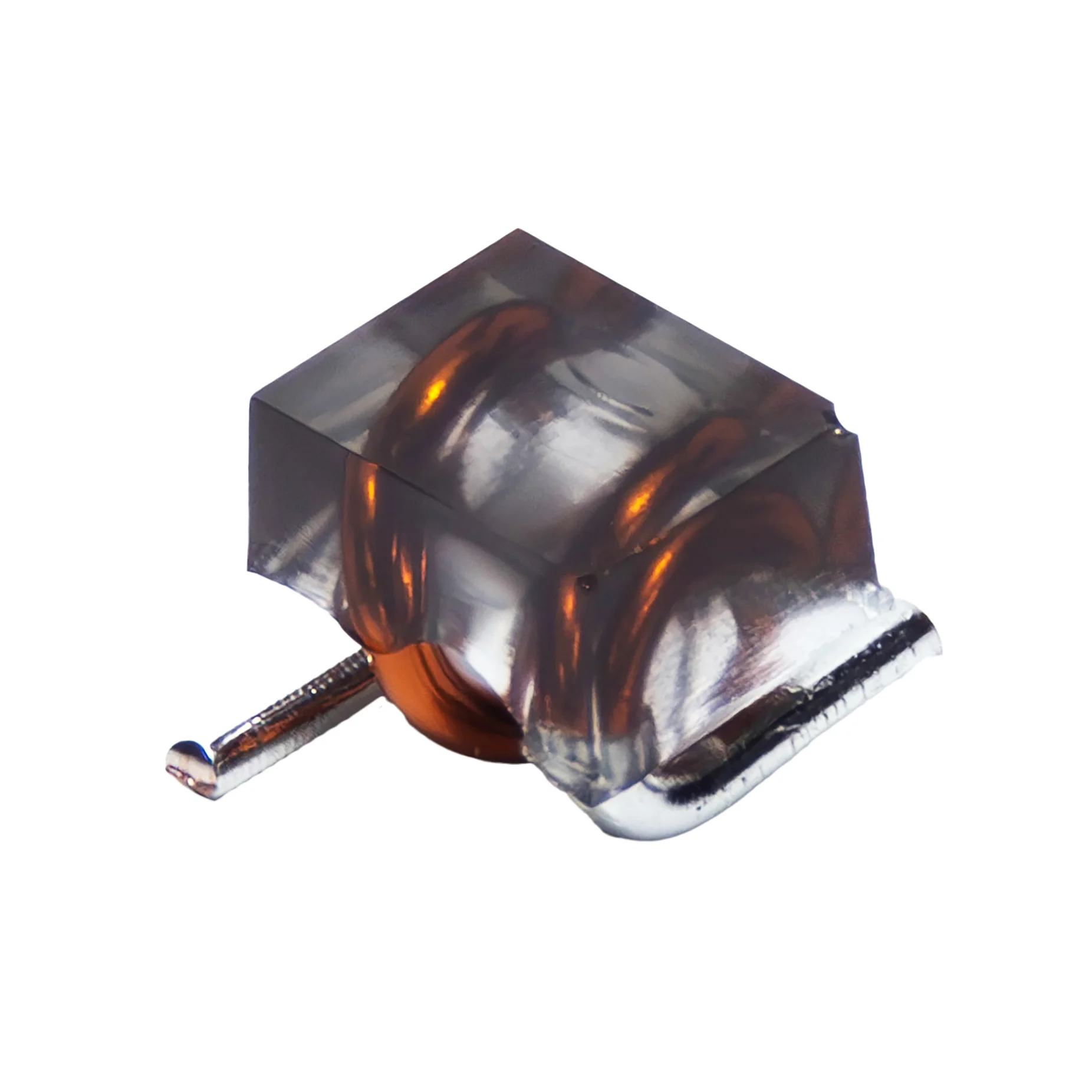

FIXED IND 8NH 4A 2.6 MOHM SMD
| Inductance | 8 nH |
| Tolerance | ±10% |
| Current Rating | 4 A |
| DC Resistance (DCR) | 2.6mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -25°C ~ 125°C |
| Dimensions | 0.145" L x 0.120" W (3.68mm x 3.05mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 8NH 4A 2.6 MOHM SMD |
| Series | AC3630R |
| productStatus | Active |
| typeConstruction | Wirewound |
| coreMaterial | Air |
| shielding | Unshielded |
| qFactor | 140 @ 150MHz |
| selfResonantFreq | 5GHz |
| ratings | - |
| testFrequency | 150 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.125" (3.18mm) |
| features | - |
