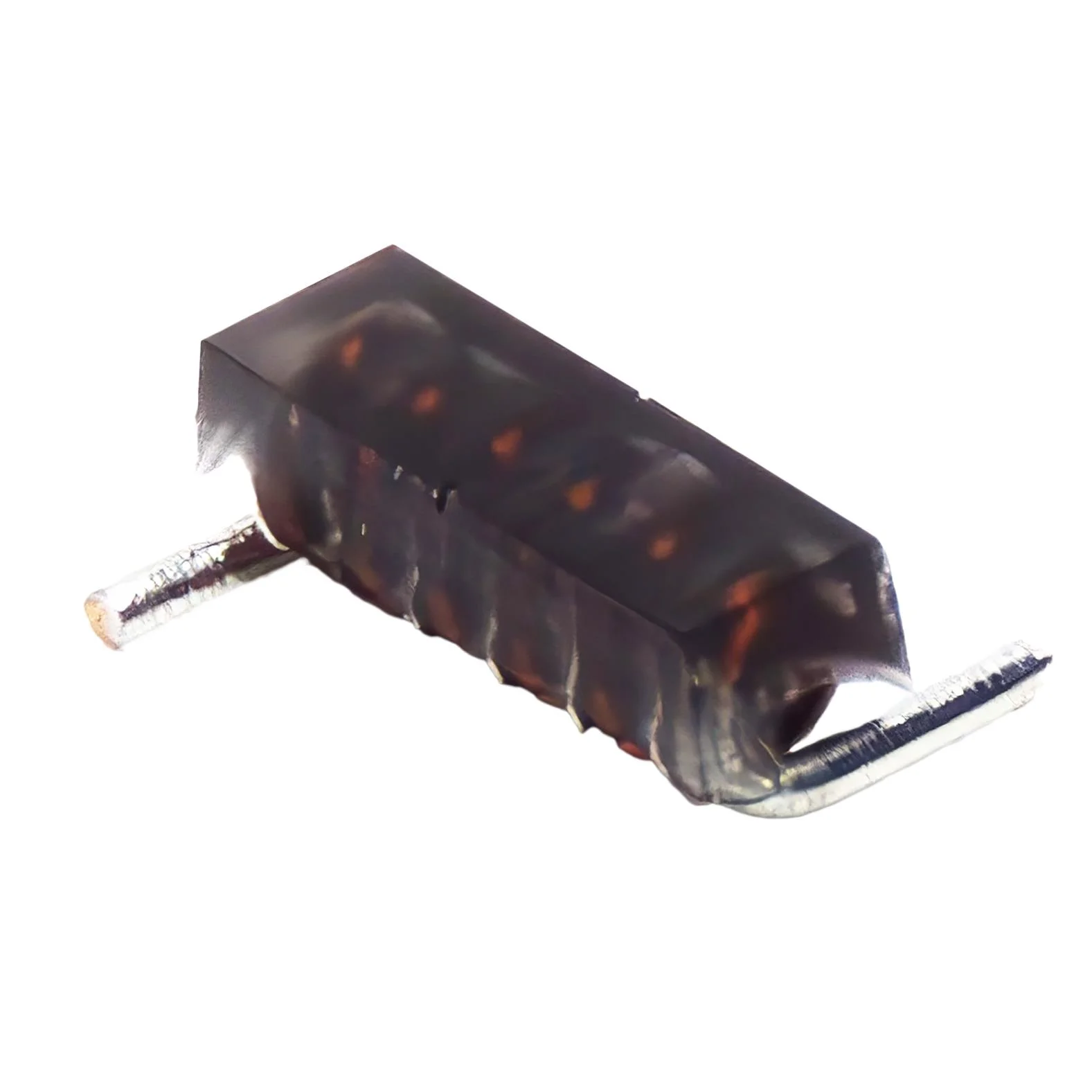

FIXED IND 5.6NH 1.6A 9 MOHM SMD
| Inductance | 5.6 nH |
| Tolerance | ±5% |
| Current Rating | 1.6 A |
| DC Resistance (DCR) | 9mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -25°C ~ 125°C |
| Dimensions | 0.159" L x 0.056" W (4.04mm x 1.42mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 5.6NH 1.6A 9 MOHM SMD |
| Series | AC4013R |
| productStatus | Active |
| typeConstruction | Wirewound |
| coreMaterial | Air |
| shielding | Unshielded |
| qFactor | 100 @ 800MHz |
| selfResonantFreq | 6.5GHz |
| ratings | - |
| testFrequency | 800 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.060" (1.52mm) |
| features | - |
