Description

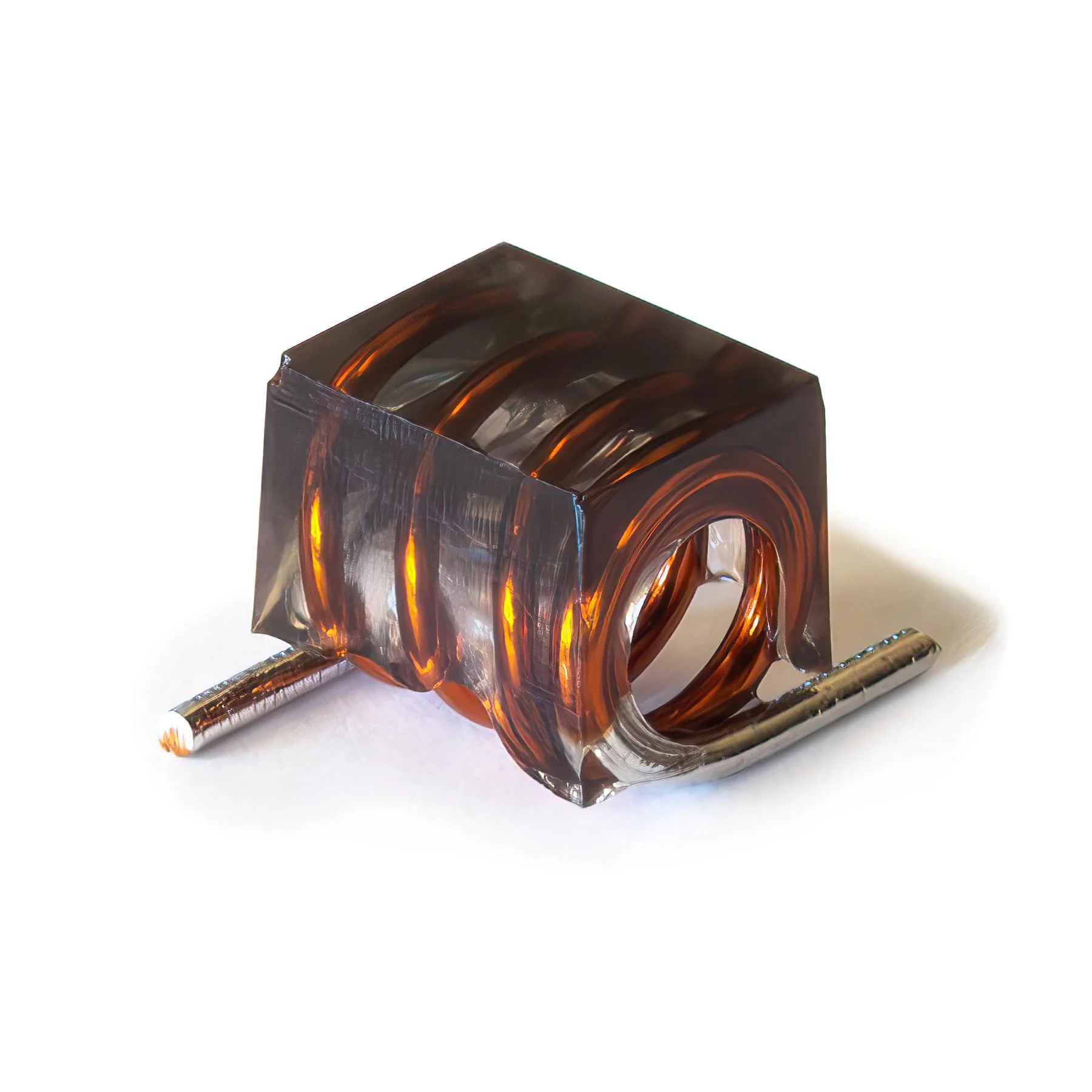

FIXED IND 68NH 2.5A 8.2 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AC4842R-68NK.
AC4842R-68NK has an inductance value of 68 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AC4842R-68NK is rated for 2.5 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AC4842R-68NK lists a DC resistance of 8.2mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AC4842R-68NK uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AC4842R-68NK to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 68 nH |
| Tolerance | ±10% |
| Current Rating | 2.5 A |
| DC Resistance (DCR) | 8.2mOhm Max |
| Operating Temperature | -25°C ~ 125°C |
| Dimensions | 0.190" L x 0.150" W (4.83mm x 3.81mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 68NH 2.5A 8.2 MOHM SMD |
| Series | AC4842R |
| Product Status | Active |
| Type / Construction | Wirewound |
| Core Material | Air |
| Shielding | Unshielded |
| Q @ Frequency | 100 @ 150MHz |
| Self Resonant Frequency | 1.5GHz |
| Inductance Test Frequency | 150 MHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.165" (4.20mm) |
