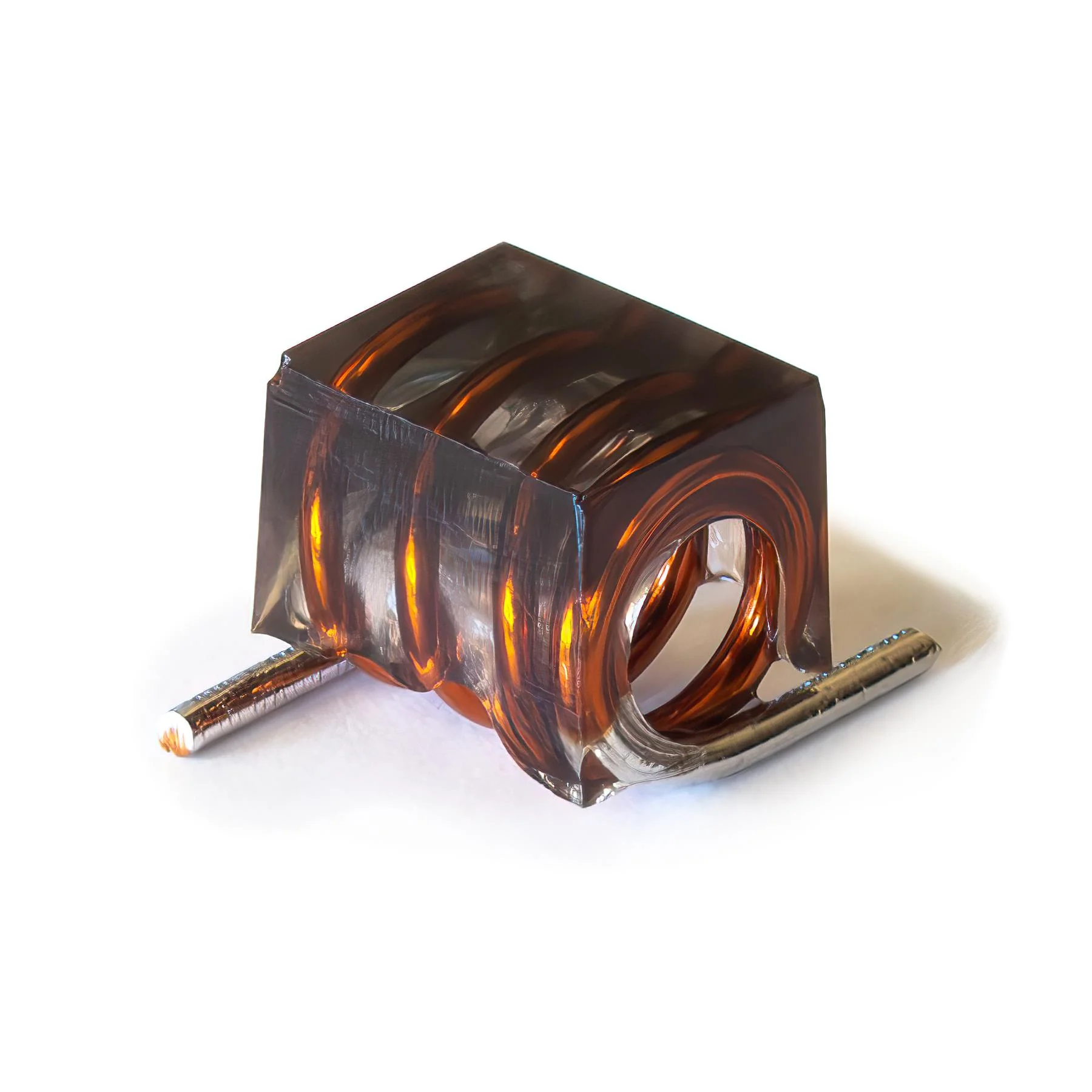

FIXED IND 100NH 1.7A 12.3 MOHM
| Inductance | 100 nH |
| Tolerance | ±10% |
| Current Rating | 1.7 A |
| DC Resistance (DCR) | 12.3mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -25°C ~ 125°C |
| Dimensions | 0.190" L x 0.150" W (4.83mm x 3.81mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 100NH 1.7A 12.3 MOHM |
| Series | AC4842R |
| productStatus | Active |
| typeConstruction | Wirewound |
| coreMaterial | Air |
| shielding | Unshielded |
| qFactor | 100 @ 150MHz |
| selfResonantFreq | 1.2GHz |
| ratings | - |
| testFrequency | 150 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.165" (4.20mm) |
| features | - |
