Description

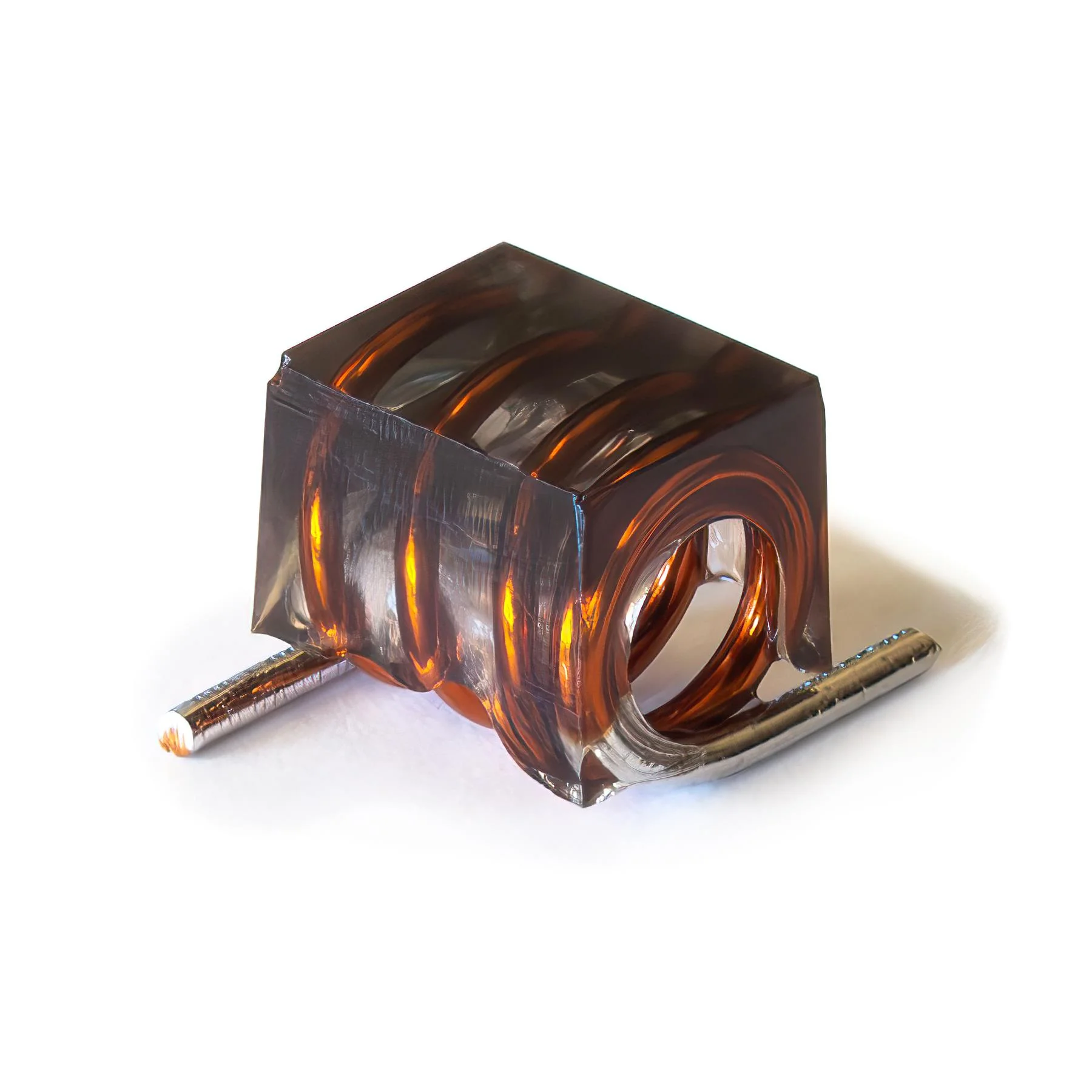

FIXED IND 150NH 1.2A 33 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AC4842R-R15K.
AC4842R-R15K has an inductance value of 150 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AC4842R-R15K is rated for 1.2 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AC4842R-R15K lists a DC resistance of 33mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AC4842R-R15K uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AC4842R-R15K to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 150 nH |
| Tolerance | ±10% |
| Current Rating | 1.2 A |
| DC Resistance (DCR) | 33mOhm Max |
| Operating Temperature | -25°C ~ 125°C |
| Dimensions | 0.190" L x 0.150" W (4.83mm x 3.81mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 150NH 1.2A 33 MOHM SMD |
| Series | AC4842R |
| Product Status | Active |
| Type / Construction | Wirewound |
| Core Material | Air |
| Shielding | Unshielded |
| Q @ Frequency | 100 @ 150MHz |
| Self Resonant Frequency | 750MHz |
| Inductance Test Frequency | 150 MHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.165" (4.20mm) |
