Description

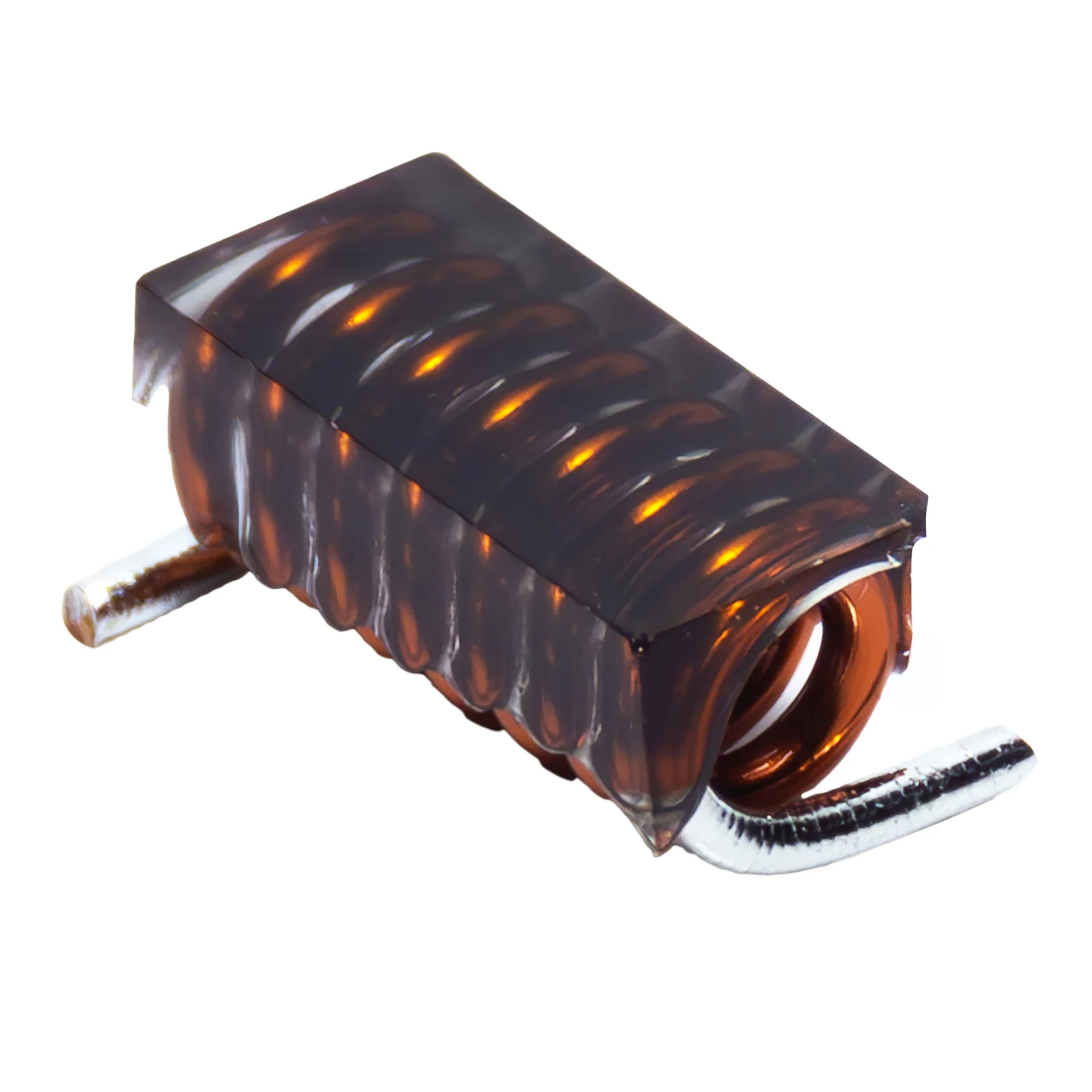

FIXED IND 43NH 4A 7.9 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AC6830R-43NG.
AC6830R-43NG has an inductance value of 43 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AC6830R-43NG is rated for 4 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AC6830R-43NG lists a DC resistance of 7.9mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AC6830R-43NG uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AC6830R-43NG to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 43 nH |
| Tolerance | ±2% |
| Current Rating | 4 A |
| DC Resistance (DCR) | 7.9mOhm Max |
| Operating Temperature | -25°C ~ 125°C |
| Dimensions | 0.270" L x 0.120" W (6.86mm x 3.05mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 43NH 4A 7.9 MOHM SMD |
| Series | AC6830R |
| Product Status | Active |
| Type / Construction | Wirewound |
| Core Material | Air |
| Shielding | Unshielded |
| Q @ Frequency | 106 @ 150MHz |
| Self Resonant Frequency | 1.2GHz |
| Inductance Test Frequency | 150 MHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.125" (3.18mm) |
