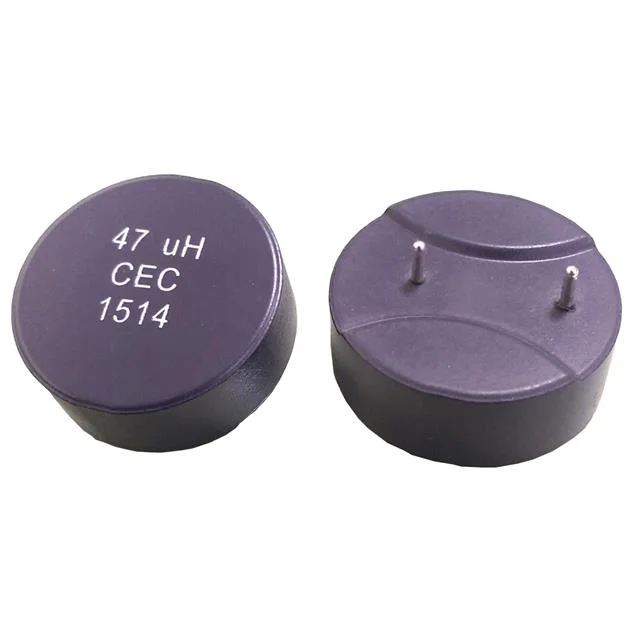

Description
FIXED IND 22UH 24A 6.85 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AFDI00282811220M06.
AFDI00282811220M06 has an inductance value of 22 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AFDI00282811220M06 is rated for 24 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AFDI00282811220M06 lists a DC resistance of 6.85mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AFDI00282811220M06 uses a package or case of Radial. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AFDI00282811220M06 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 22 µH |
| Tolerance | ±20% |
| Current Rating | 24 A |
| DC Resistance (DCR) | 6.85mOhm Max |
| Saturation Current | 19A |
| Operating Temperature | -50°C ~ 155°C |
| Dimensions | 1.102" L x 1.102" W (28.00mm x 28.00mm) |
| Case / Size | Radial |
| Package / Case | Radial |
| Supplier | Pulse Electronics |
| Description | FIXED IND 22UH 24A 6.85 MOHM TH |
| Series | AFDI |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Metal |
| Shielding | Shielded |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Through Hole |
| Supplier Device Package | Radial |
| Height - Seated (Max) | 0.429" (10.90mm) |
