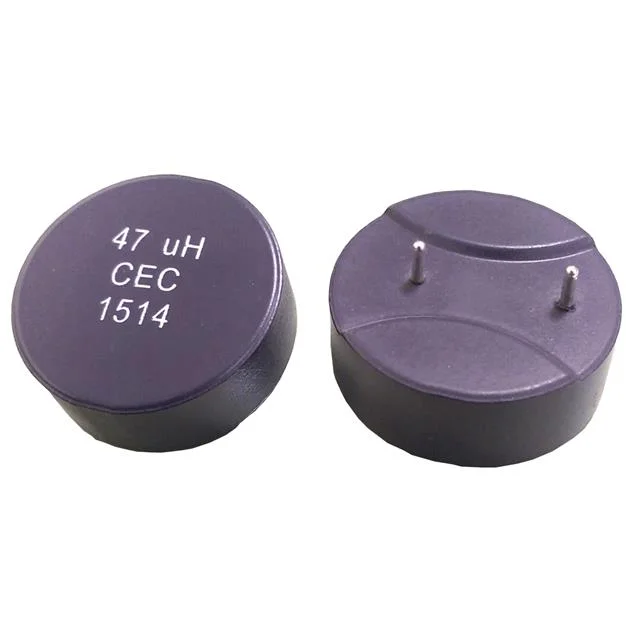

Description
FIXED IND 22UH 23A 6.83 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AFDI00303012220M04.
AFDI00303012220M04 has an inductance value of 22 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AFDI00303012220M04 is rated for 23 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AFDI00303012220M04 lists a DC resistance of 6.83mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AFDI00303012220M04 uses a package or case of Radial. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AFDI00303012220M04 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 22 µH |
| Tolerance | ±20% |
| Current Rating | 23 A |
| DC Resistance (DCR) | 6.83mOhm Max |
| Saturation Current | 23A |
| Operating Temperature | -50°C ~ 155°C |
| Dimensions | 1.181" L x 1.181" W (30.00mm x 30.00mm) |
| Case / Size | Radial |
| Package / Case | Radial |
| Supplier | Pulse Electronics |
| Description | FIXED IND 22UH 23A 6.83 MOHM TH |
| Series | AFDI |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Metal |
| Shielding | Shielded |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Through Hole |
| Supplier Device Package | Radial |
| Height - Seated (Max) | 0.500" (12.70mm) |
