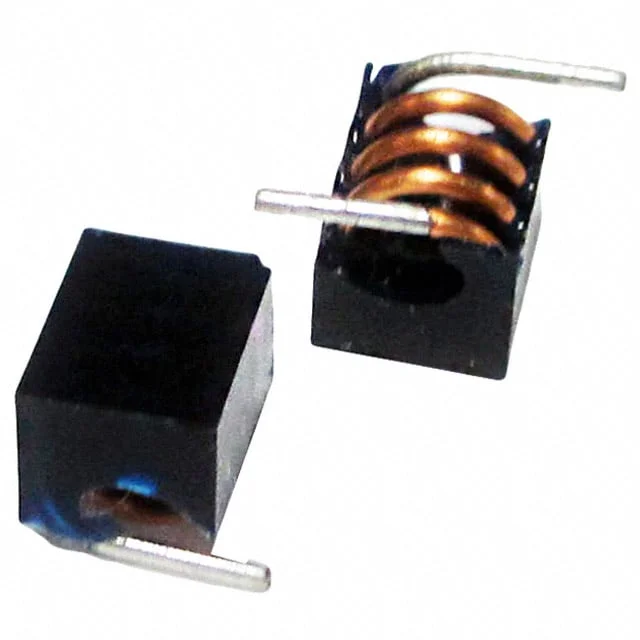

FIXED IND 18NH 500MA 12.5 MOHM
| Inductance | 18 nH |
| Tolerance | ±10% |
| Current Rating | 500 mA |
| DC Resistance (DCR) | 12.5mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.112" L x 0.071" W (2.85mm x 1.80mm) |
| Case / Size | Nonstandard |
| Supplier | Abracon |
| Description | FIXED IND 18NH 500MA 12.5 MOHM |
| Series | AIAC-0805C |
| productStatus | Obsolete |
| typeConstruction | Wirewound |
| coreMaterial | Air |
| shielding | Unshielded |
| qFactor | 70 @ 300MHz |
| selfResonantFreq | 2.5GHz |
| ratings | - |
| testFrequency | 300 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.083" (2.10mm) |
| features | https://www.digikey.com/en/products/detail/abracon-llc/AIAC-0805C-18NK-T/3737357 |
