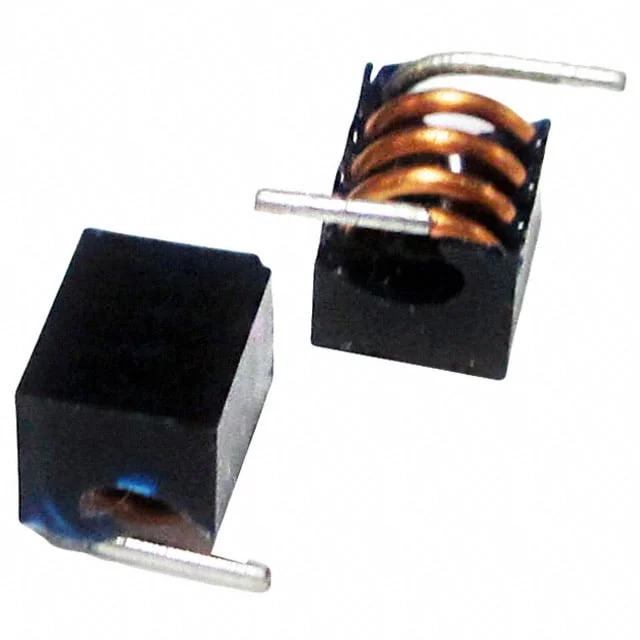

FIXED IND 39NH 500MA 21.6 MOHM
| Inductance | 39 nH |
| Tolerance | ±10% |
| Current Rating | 500 mA |
| DC Resistance (DCR) | 21.6mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.126" L x 0.075" W (3.20mm x 1.90mm) |
| Case / Size | Nonstandard |
| Supplier | Abracon |
| Description | FIXED IND 39NH 500MA 21.6 MOHM |
| Series | AIAC-1008C |
| productStatus | Obsolete |
| typeConstruction | Wirewound |
| coreMaterial | Air |
| shielding | Unshielded |
| qFactor | 70 @ 300MHz |
| selfResonantFreq | 1.5GHz |
| ratings | - |
| testFrequency | 300 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.087" (2.20mm) |
