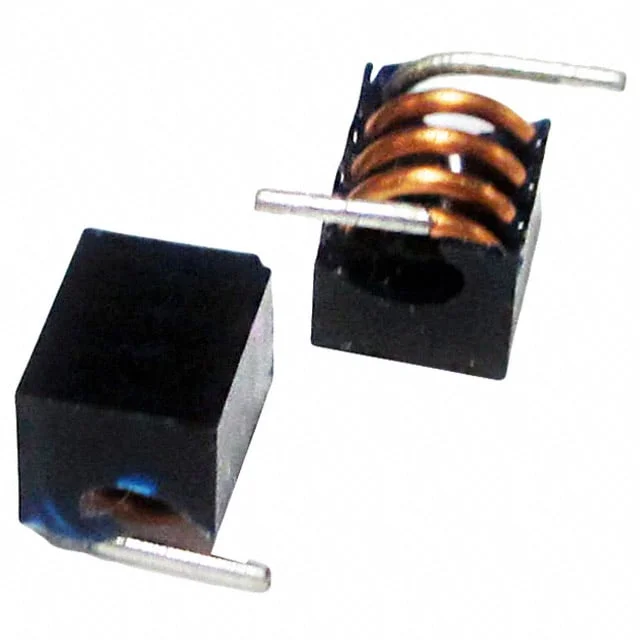

FIXED IND 6.8NH 1.2A 4 MOHM SMD
| Inductance | 6.8 nH |
| Tolerance | ±10% |
| Current Rating | 1.2 A |
| DC Resistance (DCR) | 4mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.126" L x 0.075" W (3.20mm x 1.90mm) |
| Case / Size | Nonstandard |
| Supplier | Abracon |
| Description | FIXED IND 6.8NH 1.2A 4 MOHM SMD |
| Series | AIAC-1008C |
| productStatus | Obsolete |
| typeConstruction | Wirewound |
| coreMaterial | Air |
| shielding | Unshielded |
| qFactor | 80 @ 300MHz |
| selfResonantFreq | 3GHz |
| ratings | - |
| testFrequency | 300 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.087" (2.20mm) |
| features | - |
