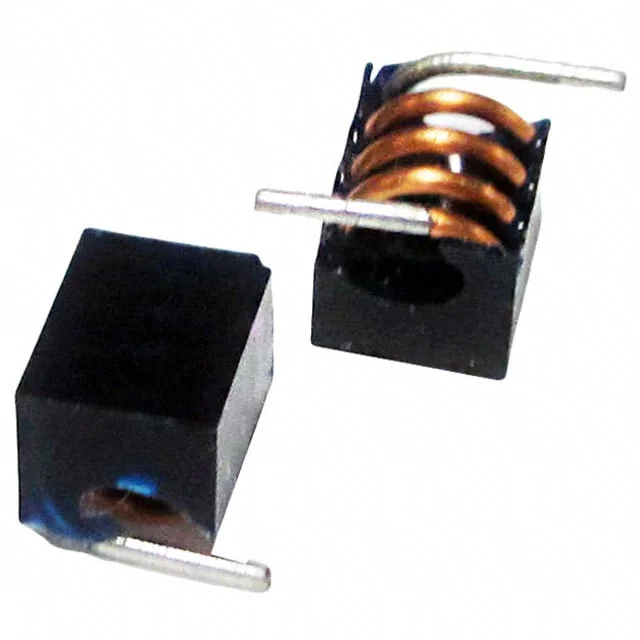

FIXED IND 2.5NH 4.8A 0.8 MOHM
| Inductance | 2.5 nH |
| Tolerance | ±10% |
| Current Rating | 4.8 A |
| DC Resistance (DCR) | 0.8mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.130" L x 0.098" W (3.30mm x 2.50mm) |
| Case / Size | Nonstandard |
| Supplier | Abracon |
| Description | FIXED IND 2.5NH 4.8A 0.8 MOHM |
| Series | AIAC-1512C |
| productStatus | Active |
| typeConstruction | Wirewound |
| coreMaterial | Air |
| shielding | Unshielded |
| qFactor | 145 @ 150MHz |
| selfResonantFreq | 3GHz |
| ratings | - |
| testFrequency | 150 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.110" (2.80mm) |
| features | - |
