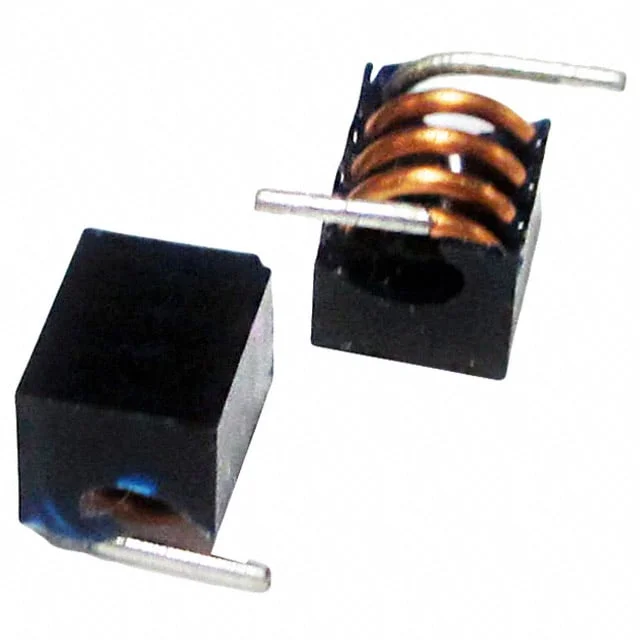

FIXED IND 47NH 2.8A 6.9 MOHM SMD
| Inductance | 47 nH |
| Tolerance | ±5% |
| Current Rating | 2.8 A |
| DC Resistance (DCR) | 6.9mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | - |
| Case / Size | Surface Mount |
| Supplier | Abracon |
| Description | FIXED IND 47NH 2.8A 6.9 MOHM SMD |
| Series | AIAC-1812 |
| productStatus | Active |
| typeConstruction | Wirewound |
| coreMaterial | Air |
| shielding | Unshielded |
| qFactor | 100 @ 150MHz |
| selfResonantFreq | 2.1GHz |
| ratings | - |
| testFrequency | 150 MHz |
| mountingType | - |
| supplierDevicePackage | Nonstandard |
| heightMax | 0.185" L x 0.138" W (4.70mm x 3.50mm) |
| features | 0.146" (3.70mm) |
