Description

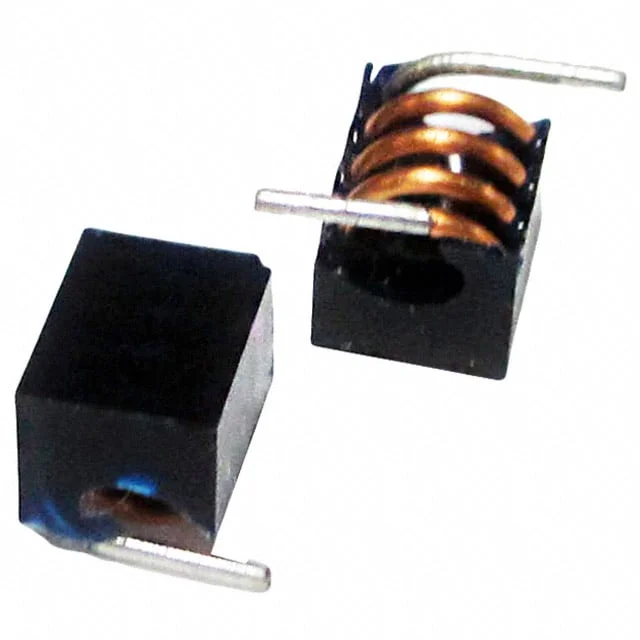

FIXED IND 56NH 2.9A 6.4 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AIAC-1812-56NJ-T.
AIAC-1812-56NJ-T has an inductance value of 56 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AIAC-1812-56NJ-T is rated for 2.9 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AIAC-1812-56NJ-T lists a DC resistance of 6.4mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AIAC-1812-56NJ-T uses a package or case of Surface Mount. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AIAC-1812-56NJ-T to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 56 nH |
| Tolerance | ±5% |
| Current Rating | 2.9 A |
| DC Resistance (DCR) | 6.4mOhm Max |
| Operating Temperature | -40°C ~ 125°C |
| Case / Size | Surface Mount |
| Package / Case | Surface Mount |
| Supplier | Abracon |
| Description | FIXED IND 56NH 2.9A 6.4 MOHM SMD |
| Series | AIAC-1812 |
| Product Status | Active |
| Type / Construction | Wirewound |
| Core Material | Air |
| Shielding | Unshielded |
| Q @ Frequency | 100 @ 150MHz |
| Self Resonant Frequency | 1.5GHz |
| Inductance Test Frequency | 150 MHz |
| Supplier Device Package | Nonstandard |
| Height - Seated (Max) | 0.185" L x 0.138" W (4.70mm x 3.50mm) |
| Features | 0.146" (3.70mm) |
