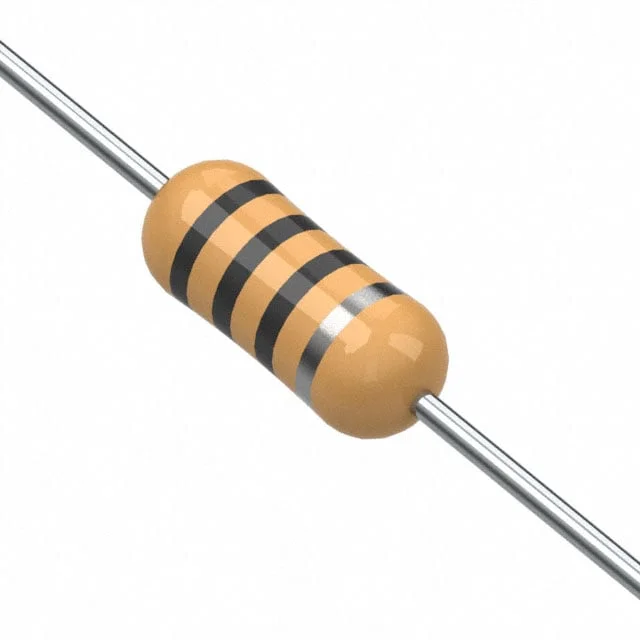

FIXED IND 6.8UH 470MA 450 MOHM
| Inductance | 6.8 µH |
| Tolerance | ±20% |
| Current Rating | 470 mA |
| DC Resistance (DCR) | 450mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -25°C ~ 105°C |
| Dimensions | Axial |
| Case / Size | Through Hole |
| Supplier | Abracon |
| Description | FIXED IND 6.8UH 470MA 450 MOHM |
| Series | AICC-02 |
| productStatus | Obsolete |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 40 @ 7.96MHz |
| selfResonantFreq | 30MHz |
| ratings | - |
| testFrequency | 7.96 MHz |
| mountingType | - |
| supplierDevicePackage | Axial |
| heightMax | 0.110" Dia x 0.245" L (2.80mm x 6.22mm) |
| features | - |
