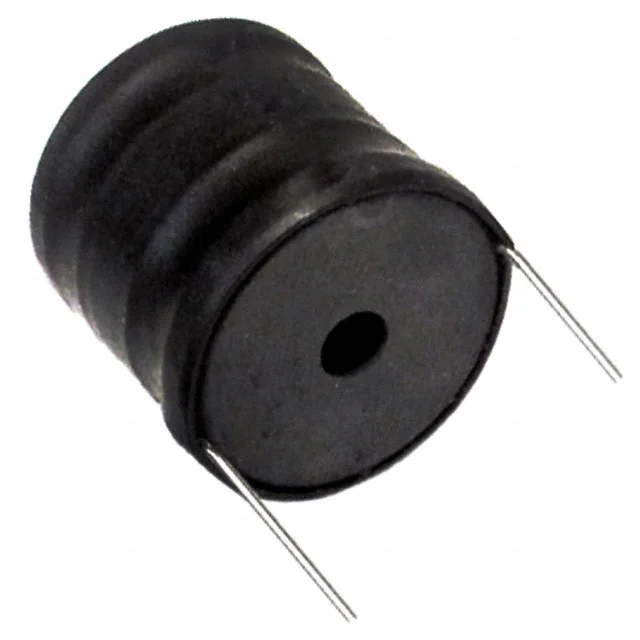

Description
FIXED IND 68UH 2.8A 77 MOHM TH
Specifications
Inductance
68 µH
Current Rating
2.8 A
DC Resistance (DCR)
77mOhm Max
Dimensions
0.650" Dia (16.50mm)
Product Attributes
Manufacturer Verified
Last verified: 6/22/2026| Inductance | 68 µH |
| Tolerance | ±10% |
| Current Rating | 2.8 A |
| DC Resistance (DCR) | 77mOhm Max |
| saturationCurrent | 8.9A |
| Operating Temperature | -25°C ~ 85°C |
| Dimensions | 0.650" Dia (16.50mm) |
| Case / Size | Radial, Vertical Cylinder |
| Supplier | Abracon |
| Description | FIXED IND 68UH 2.8A 77 MOHM TH |
| Series | AIRD-01 |
| productStatus | Obsolete |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | 0.827" (21.00mm) |
| features | - |
