Description

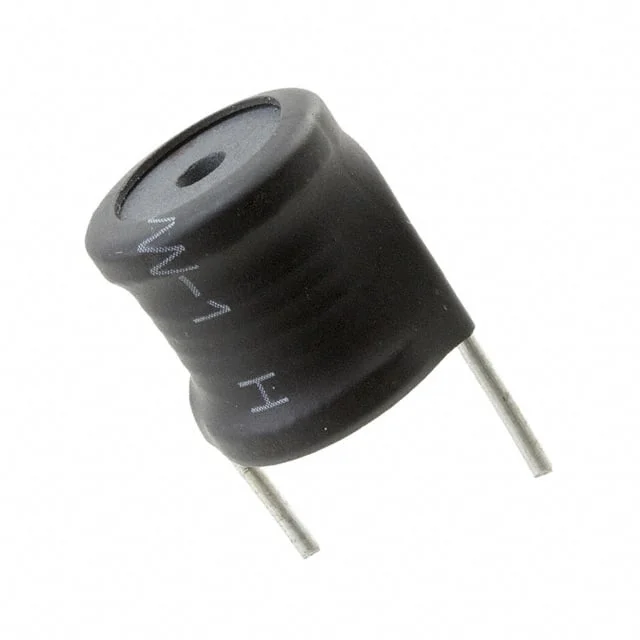

FIXED IND 1.5MH 800MA 1.26 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AIRD-02-152K.
AIRD-02-152K has an inductance value of 1.5 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AIRD-02-152K is rated for 800 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AIRD-02-152K lists a DC resistance of 1.26Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AIRD-02-152K uses a package or case of Through Hole. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AIRD-02-152K to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 1.5 mH |
| Tolerance | ±10% |
| Current Rating | 800 mA |
| DC Resistance (DCR) | 1.26Ohm Max |
| Saturation Current | 2.4A |
| Operating Temperature | -25°C ~ 85°C |
| Case / Size | Through Hole |
| Package / Case | Through Hole |
| Supplier | Abracon |
| Description | FIXED IND 1.5MH 800MA 1.26 OHM |
| Series | AIRD-02 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 1 kHz |
| Supplier Device Package | Radial, Vertical Cylinder |
| Height - Seated (Max) | 0.827" Dia (21.00mm) |
| Features | 0.827" (21.00mm) |
