Description

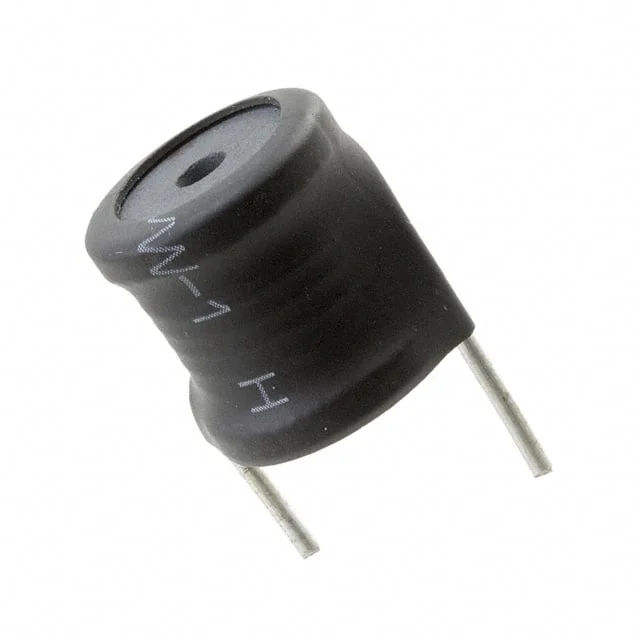

FIXED IND 1UH 11.4A 3 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AIRD-02-1R0K.
AIRD-02-1R0K has an inductance value of 1 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AIRD-02-1R0K is rated for 11.4 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AIRD-02-1R0K lists a DC resistance of 3mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AIRD-02-1R0K uses a package or case of Through Hole. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AIRD-02-1R0K to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 1 µH |
| Tolerance | ±10% |
| Current Rating | 11.4 A |
| DC Resistance (DCR) | 3mOhm Max |
| Saturation Current | 108A |
| Operating Temperature | -25°C ~ 85°C |
| Case / Size | Through Hole |
| Package / Case | Through Hole |
| Supplier | Abracon |
| Description | FIXED IND 1UH 11.4A 3 MOHM TH |
| Series | AIRD-02 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 1 kHz |
| Supplier Device Package | Radial, Vertical Cylinder |
| Height - Seated (Max) | 0.827" Dia (21.00mm) |
| Features | 0.827" (21.00mm) |
