Description

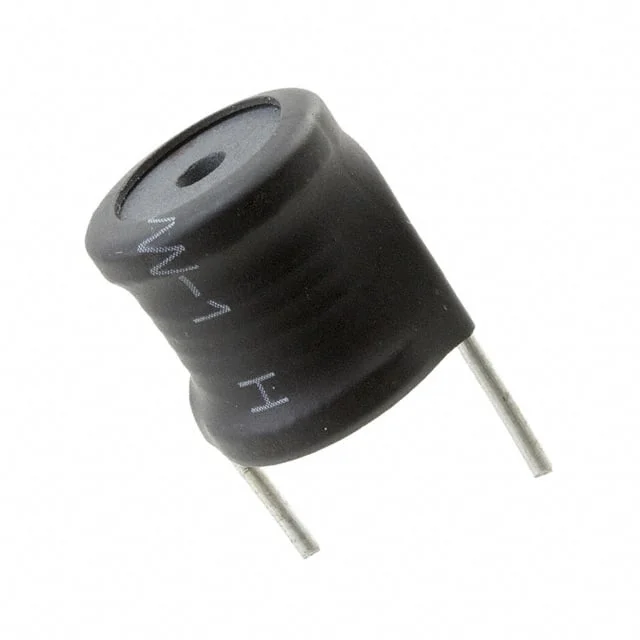

FIXED IND 1.2UH 11.4A 3 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AIRD-02-1R2K.
AIRD-02-1R2K has an inductance value of 1.2 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AIRD-02-1R2K is rated for 11.4 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AIRD-02-1R2K lists a DC resistance of 3mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AIRD-02-1R2K uses a package or case of Through Hole. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AIRD-02-1R2K to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 1.2 µH |
| Tolerance | ±10% |
| Current Rating | 11.4 A |
| DC Resistance (DCR) | 3mOhm Max |
| Saturation Current | 108A |
| Operating Temperature | -25°C ~ 85°C |
| Case / Size | Through Hole |
| Package / Case | Through Hole |
| Supplier | Abracon |
| Description | FIXED IND 1.2UH 11.4A 3 MOHM TH |
| Series | AIRD-02 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 1 kHz |
| Supplier Device Package | Radial, Vertical Cylinder |
| Height - Seated (Max) | 0.827" Dia (21.00mm) |
| Features | 0.827" (21.00mm) |
