Description
FIXED IND 1.2MH 2A 462 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AIRD-03-122K.
AIRD-03-122K has an inductance value of 1.2 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AIRD-03-122K is rated for 2 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AIRD-03-122K lists a DC resistance of 462mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.

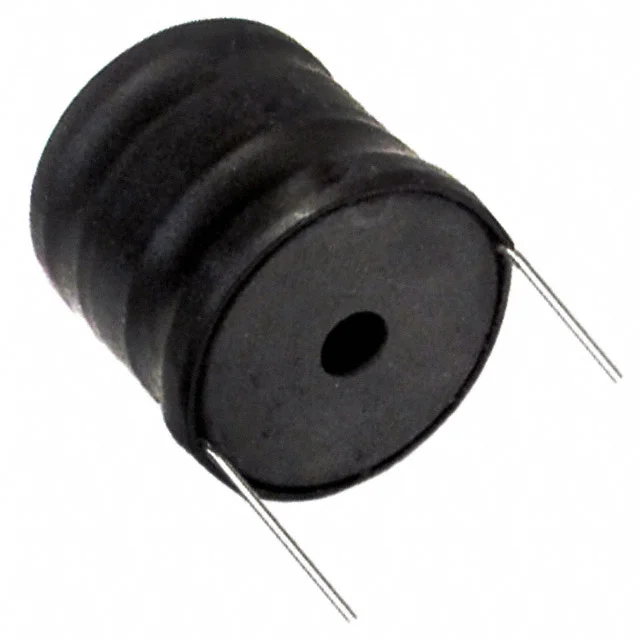

AIRD-03-122K uses a package or case of Radial, Vertical Cylinder. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AIRD-03-122K to manufacturer, series, and broader datasheet collections.
Similar-specification candidates · Engineering review required
Screened against recorded construction, core, mounting, dimensions and current/DCR. Land pattern, test conditions and circuit compatibility still require validation.
Missing evidence or no candidates passed screening. A replacement cannot be determined; request a review of the original datasheets.
Product Attributes
| Inductance | 1.2 mH |
| Tolerance | ±10% |
| Current Rating | 2 A |
| DC Resistance (DCR) | 462mOhm Max |
| Saturation Current | 3.7A |
| Operating Temperature | -25°C ~ 85°C |
| Dimensions | 1.102" Dia (28.00mm) |
| Case / Size | Radial, Vertical Cylinder |
| Package / Case | Radial, Vertical Cylinder |
| Supplier | Abracon |
| Description | FIXED IND 1.2MH 2A 462 MOHM TH |
| Series | AIRD-03 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 0.827" (21.00mm) |
