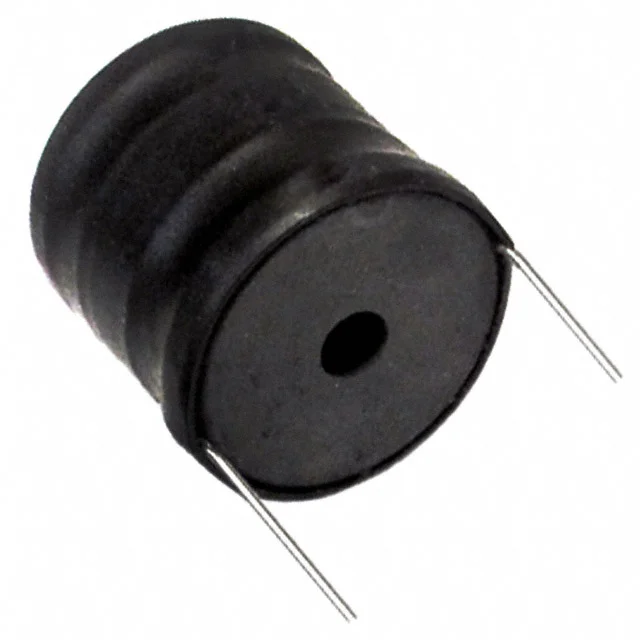

FIXED IND 180UH 5.5A 72 MOHM TH
| Inductance | 180 µH |
| Tolerance | ±10% |
| Current Rating | 5.5 A |
| DC Resistance (DCR) | 72mOhm Max |
| saturationCurrent | 9.7A |
| Operating Temperature | -25°C ~ 85°C |
| Dimensions | 1.102" Dia (28.00mm) |
| Case / Size | Radial, Vertical Cylinder |
| Supplier | Abracon |
| Description | FIXED IND 180UH 5.5A 72 MOHM TH |
| Series | AIRD-03 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | 0.827" (21.00mm) |
| features | - |
