Description

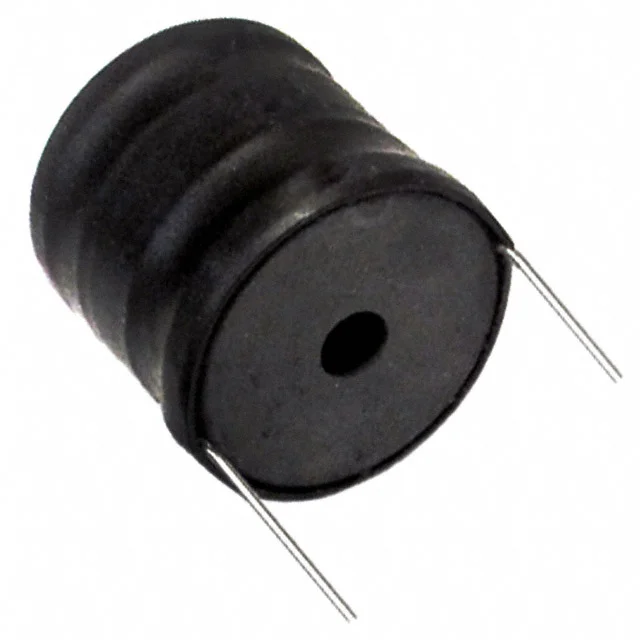

FIXED IND 3.3MH 1.3A 1.27 OHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AIRD-03-332K.
AIRD-03-332K has an inductance value of 3.3 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AIRD-03-332K is rated for 1.3 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AIRD-03-332K uses a package or case of Radial, Vertical Cylinder. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AIRD-03-332K to manufacturer, series, and broader datasheet collections.
Similar-specification candidates · Engineering review required
Screened against recorded construction, core, mounting, dimensions and current/DCR. Land pattern, test conditions and circuit compatibility still require validation.
Missing evidence or no candidates passed screening. A replacement cannot be determined; request a review of the original datasheets.
No confirmed DCR data is available. DCR is excluded from copper-loss calculations, numeric filtering and replacement screening until the manufacturer confirms it.
Product Attributes
| Inductance | 3.3 mH |
| Tolerance | ±10% |
| Current Rating | 1.3 A |
| Saturation Current | 2A |
| Operating Temperature | -25°C ~ 85°C |
| Dimensions | 1.102" Dia (28.00mm) |
| Case / Size | Radial, Vertical Cylinder |
| Package / Case | Radial, Vertical Cylinder |
| Supplier | Abracon |
| Description | FIXED IND 3.3MH 1.3A 1.27 OHM TH |
| Series | AIRD-03 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 0.827" (21.00mm) |
