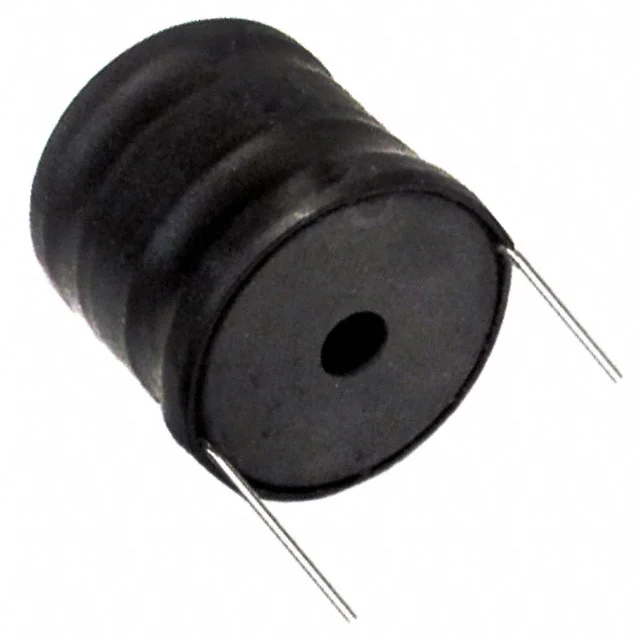

Description
FIXED IND 3.3UH 11.4A 5 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AIRD-06-3R3M.
AIRD-06-3R3M has an inductance value of 3.3 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AIRD-06-3R3M is rated for 11.4 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AIRD-06-3R3M lists a DC resistance of 5mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AIRD-06-3R3M uses a package or case of Through Hole. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AIRD-06-3R3M to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 3.3 µH |
| Tolerance | ±20% |
| Current Rating | 11.4 A |
| DC Resistance (DCR) | 5mOhm Max |
| Saturation Current | 58A |
| Operating Temperature | -25°C ~ 85°C |
| Case / Size | Through Hole |
| Package / Case | Through Hole |
| Supplier | Abracon |
| Description | FIXED IND 3.3UH 11.4A 5 MOHM TH |
| Series | AIRD-06 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | 15 @ 50kHz |
| Inductance Test Frequency | 1 kHz |
| Supplier Device Package | Radial, Vertical Cylinder |
| Height - Seated (Max) | 0.827" Dia (21.00mm) |
| Features | 0.827" (21.00mm) |
