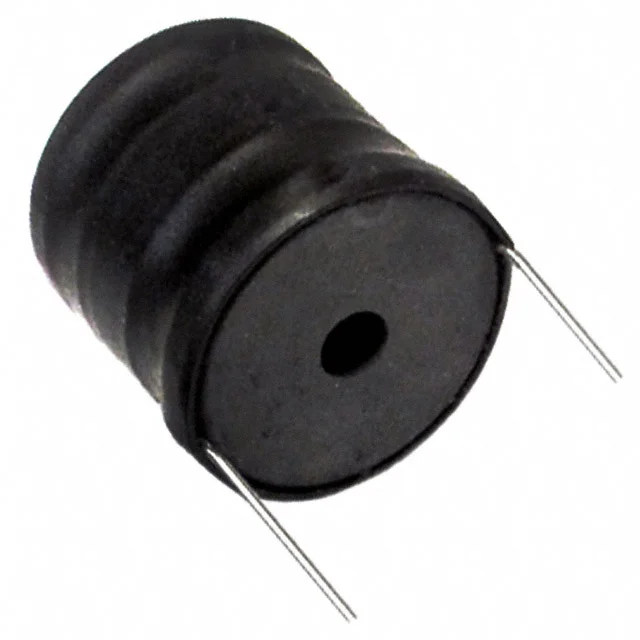

FIXED IND 8.2UH 11.4A 7 MOHM TH
| Inductance | 8.2 µH |
| Tolerance | ±10% |
| Current Rating | 11.4 A |
| DC Resistance (DCR) | 7mOhm Max |
| saturationCurrent | 36A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | - |
| Case / Size | Through Hole |
| Supplier | Abracon |
| Description | FIXED IND 8.2UH 11.4A 7 MOHM TH |
| Series | AIRD-06 |
| productStatus | Obsolete |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 15 @ 1kHz |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | - |
| supplierDevicePackage | Radial, Vertical Cylinder |
| heightMax | 0.827" Dia (21.00mm) |
| features | - |
