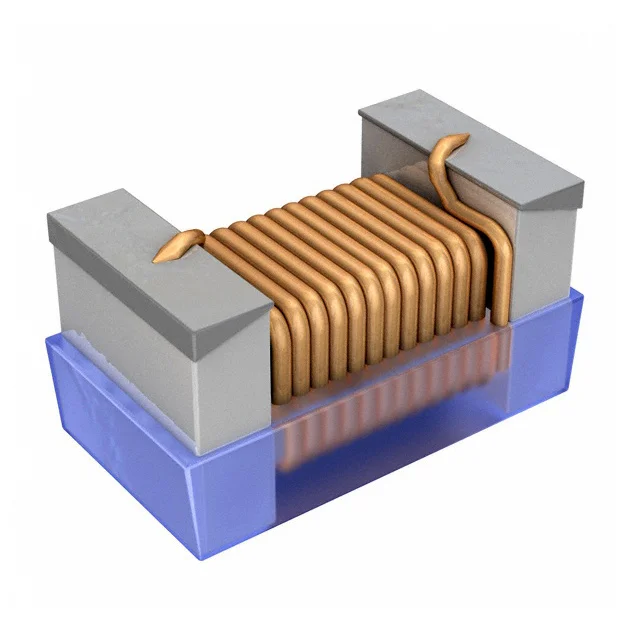

FIXED IND 130NH 640MA 230 MOHM
| Inductance | 130 nH |
| Tolerance | ±10% |
| Current Rating | 640 mA |
| DC Resistance (DCR) | 230mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 85°C |
| Dimensions | 0402 |
| Case / Size | Surface Mount |
| Supplier | Abracon |
| Description | FIXED IND 130NH 640MA 230 MOHM |
| Series | AISC-0402F |
| productStatus | Obsolete |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | 1GHz |
| ratings | - |
| testFrequency | 100 MHz |
| mountingType | - |
| supplierDevicePackage | 0402 (1005 Metric) |
| heightMax | 0.043" L x 0.024" W (1.10mm x 0.60mm) |
| features | 0.028" (0.70mm) |
