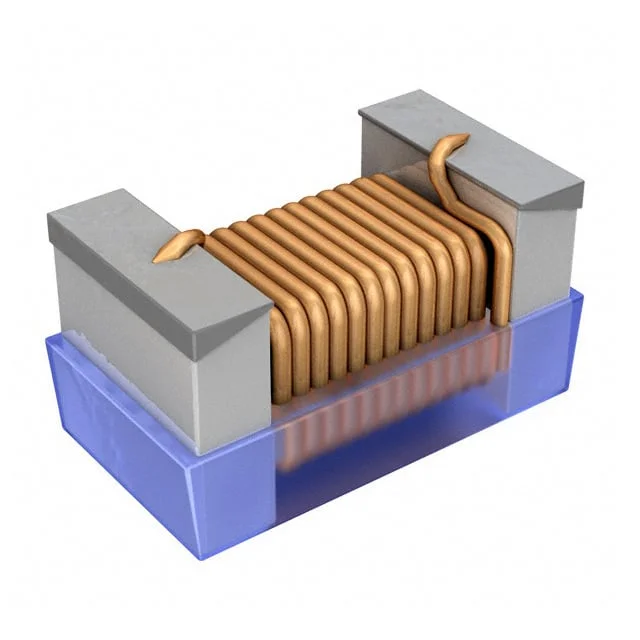

FIXED IND 22UH 70MA 11.4 OHM SMD
| Inductance | 22 µH |
| Tolerance | ±5% |
| Current Rating | 70 mA |
| DC Resistance (DCR) | 11.4Ohm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 85°C |
| Dimensions | 0603 (1608 Metric) |
| Case / Size | Surface Mount |
| Supplier | Abracon |
| Description | FIXED IND 22UH 70MA 11.4 OHM SMD |
| Series | AISC-0603F |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | 20MHz |
| ratings | - |
| testFrequency | 2.5 MHz |
| mountingType | - |
| supplierDevicePackage | 0603 (1608 Metric) |
| heightMax | 0.063" L x 0.039" W (1.60mm x 1.00mm) |
| features | 0.047" (1.20mm) |
