Description
FIXED IND 47NH 500MA 310 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AISC-0805-R047G-T.
AISC-0805-R047G-T has an inductance value of 47 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AISC-0805-R047G-T is rated for 500 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AISC-0805-R047G-T lists a DC resistance of 310mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AISC-0805-R047G-T uses a package or case of Surface Mount. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AISC-0805-R047G-T to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 47 nH |
| Tolerance | ±2% |
| Current Rating | 500 mA |
| DC Resistance (DCR) | 310mOhm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0805 |
| Case / Size | Surface Mount |
| Package / Case | Surface Mount |
| Supplier | Abracon |
| Description | FIXED IND 47NH 500MA 310 MOHM |
| Series | AISC-0805 |
| Product Status | Active |

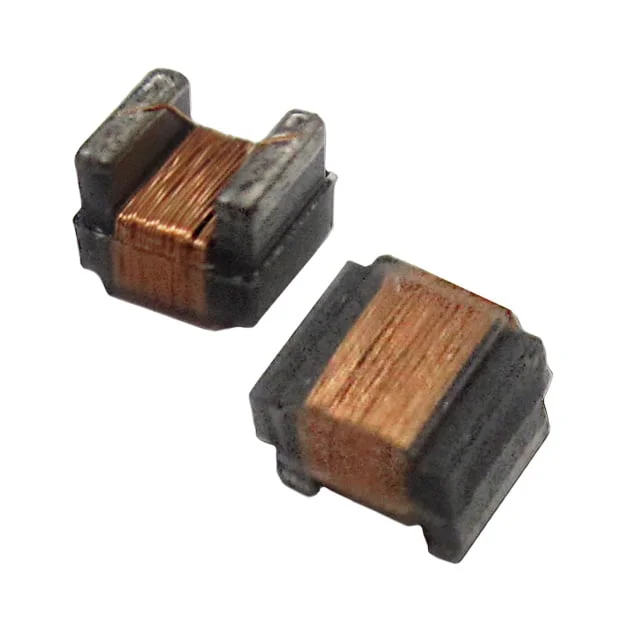

| Type / Construction | Drum Core, Wirewound |
| Core Material | Ceramic |
| Shielding | Unshielded |
| Q @ Frequency | 50 @ 500MHz |
| Self Resonant Frequency | 1.6GHz |
| Inductance Test Frequency | 200 MHz |
| Supplier Device Package | 0805 (2012 Metric) |
| Height - Seated (Max) | 0.090" L x 0.068" W (2.29mm x 1.73mm) |
| Features | 0.061" (1.55mm) |
