Description

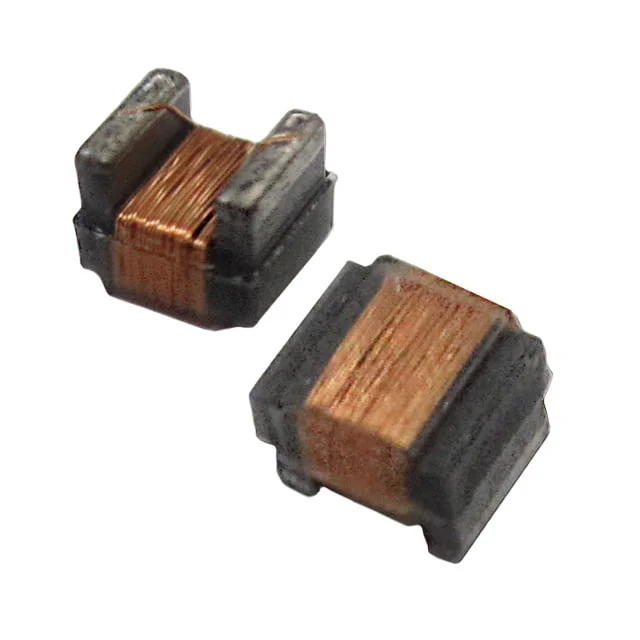

FIXED IND 390NH 290MA 1.5 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AISC-0805-R39G-T.
AISC-0805-R39G-T has an inductance value of 390 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AISC-0805-R39G-T is rated for 290 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AISC-0805-R39G-T lists a DC resistance of 1.5Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AISC-0805-R39G-T uses a package or case of Surface Mount. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AISC-0805-R39G-T to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 390 nH |
| Tolerance | ±2% |
| Current Rating | 290 mA |
| DC Resistance (DCR) | 1.5Ohm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0805 |
| Case / Size | Surface Mount |
| Package / Case | Surface Mount |
| Supplier | Abracon |
| Description | FIXED IND 390NH 290MA 1.5 OHM |
| Series | AISC-0805 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ceramic |
| Shielding | Unshielded |
| Q @ Frequency | 35 @ 250MHz |
| Self Resonant Frequency | 560MHz |
| Inductance Test Frequency | 100 MHz |
| Supplier Device Package | 0805 (2012 Metric) |
| Height - Seated (Max) | 0.090" L x 0.068" W (2.29mm x 1.73mm) |
| Features | 0.061" (1.55mm) |
