Description

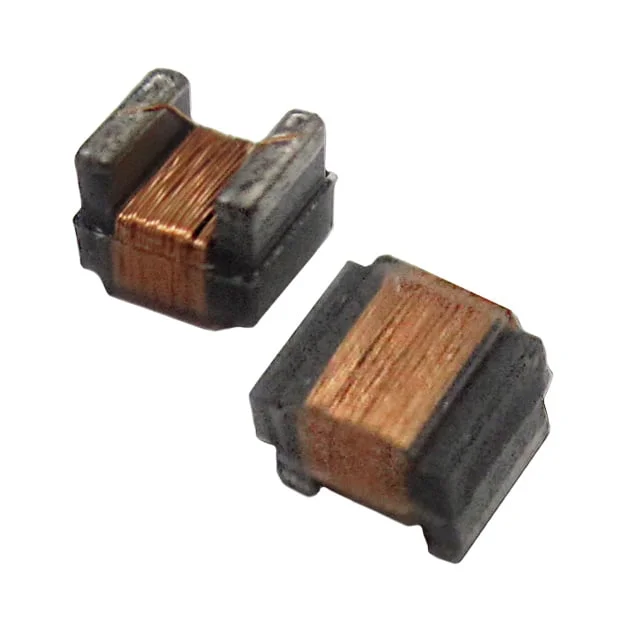

FIXED IND 6.2NH 1.6A 35 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AISC-0805HQ-6N2J-T.
AISC-0805HQ-6N2J-T has an inductance value of 6.2 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AISC-0805HQ-6N2J-T is rated for 1.6 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AISC-0805HQ-6N2J-T lists a DC resistance of 35mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AISC-0805HQ-6N2J-T uses a package or case of Surface Mount. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AISC-0805HQ-6N2J-T to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 6.2 nH |
| Tolerance | ±5% |
| Current Rating | 1.6 A |
| DC Resistance (DCR) | 35mOhm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0805 |
| Case / Size | Surface Mount |
| Package / Case | Surface Mount |
| Supplier | Abracon |
| Description | FIXED IND 6.2NH 1.6A 35 MOHM SMD |
| Series | AISC-0805HQ |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ceramic |
| Shielding | Unshielded |
| Q @ Frequency | 88 @ 1GHz |
| Self Resonant Frequency | 4.75GHz |
| Inductance Test Frequency | 250 MHz |
| Supplier Device Package | Nonstandard |
| Height - Seated (Max) | 0.090" L x 0.068" W (2.29mm x 1.73mm) |
| Features | 0.060" (1.52mm) |
