Description

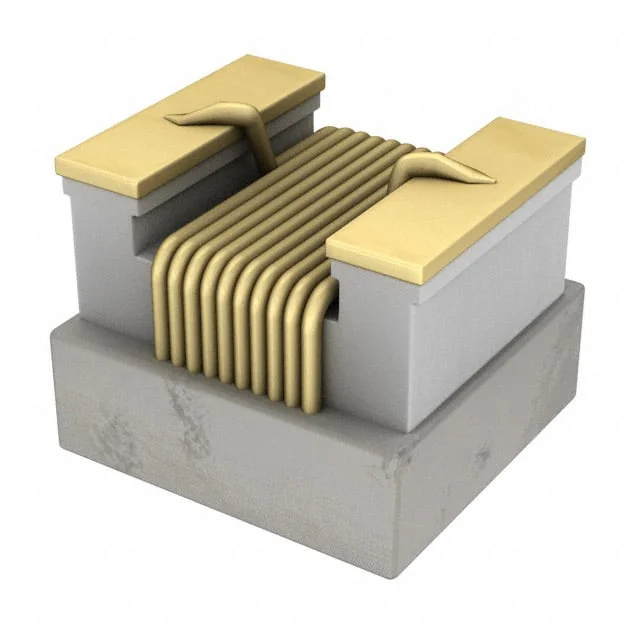

FIXED IND 820NH 400MA 1.61 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AISC-1008-R82J-T.
AISC-1008-R82J-T has an inductance value of 820 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AISC-1008-R82J-T is rated for 400 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AISC-1008-R82J-T lists a DC resistance of 1.61Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AISC-1008-R82J-T uses a package or case of Surface Mount. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AISC-1008-R82J-T to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 820 nH |
| Tolerance | ±5% |
| Current Rating | 400 mA |
| DC Resistance (DCR) | 1.61Ohm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 1008 (2520 Metric) |
| Case / Size | Surface Mount |
| Package / Case | Surface Mount |
| Supplier | Abracon |
| Description | FIXED IND 820NH 400MA 1.61 OHM |
| Series | AISC-1008 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ceramic |
| Shielding | Unshielded |
| Q @ Frequency | 45 @ 100MHz |
| Self Resonant Frequency | 330MHz |
| Inductance Test Frequency | 25 MHz |
| Supplier Device Package | 1008 (2520 Metric) |
| Height - Seated (Max) | 0.115" L x 0.110" W (2.92mm x 2.79mm) |
| Features | 0.090" (2.29mm) |
