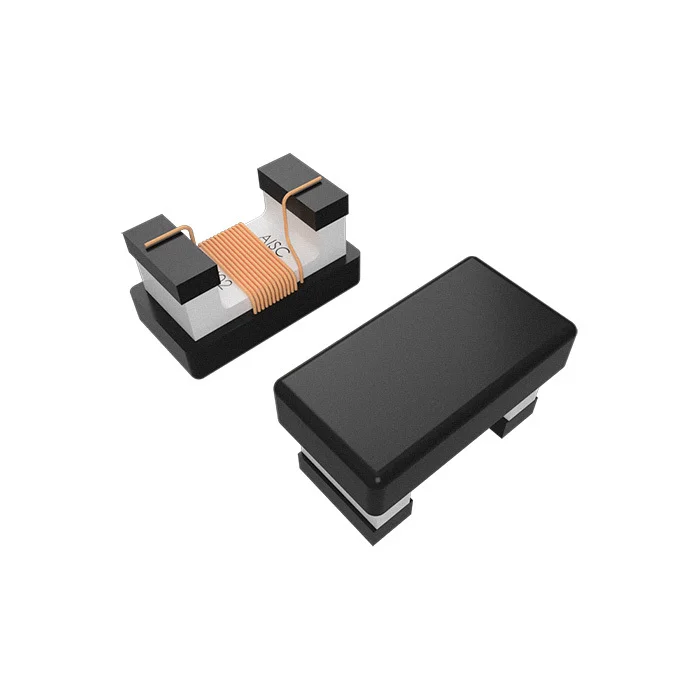

FIXED IND 2.4NH 790MA 70 MOHM
| Inductance | 2.4 nH |
| Tolerance | ±10% |
| Current Rating | 790 mA |
| DC Resistance (DCR) | 70mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.050" L x 0.030" W (1.27mm x 0.76mm) |
| Case / Size | 0402 (1005 Metric) |
| Supplier | Abracon |
| Description | FIXED IND 2.4NH 790MA 70 MOHM |
| Series | AISC-Q0402 |
| productStatus | Active |
| typeConstruction | Wirewound |
| coreMaterial | Ceramic |
| shielding | Unshielded |
| qFactor | 15 @ 250MHz |
| selfResonantFreq | 10.5GHz |
| ratings | AEC-Q200 |
| testFrequency | 250 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 0402 |
| heightMax | 0.024" (0.61mm) |
| features | - |
