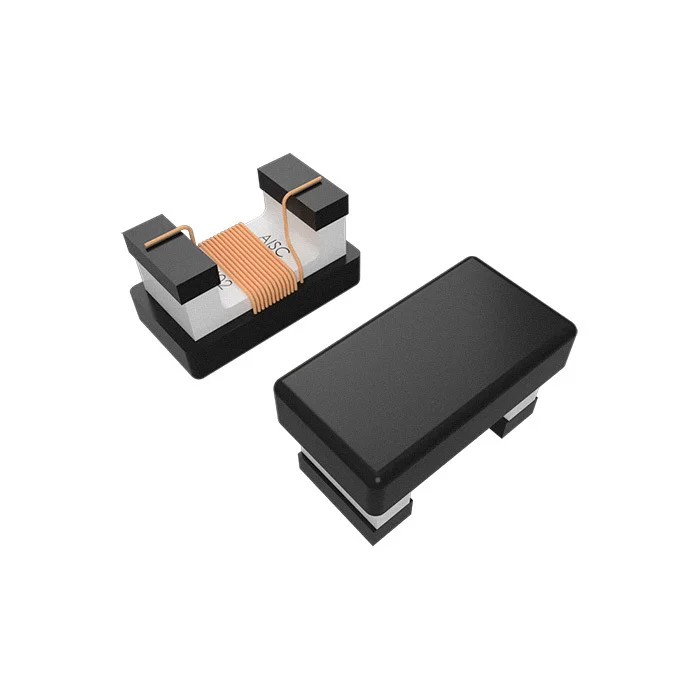

Description
FIXED IND 33NH 400MA 350 MOHM
Specifications
Inductance
33 nH
Current Rating
400 mA
DC Resistance (DCR)
350mOhm Max
Dimensions
0402
Product Attributes
Manufacturer Verified
Last verified: 6/22/2026| Inductance | 33 nH |
| Tolerance | ±2% |
| Current Rating | 400 mA |
| DC Resistance (DCR) | 350mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0402 |
| Case / Size | Surface Mount |
| Supplier | Abracon |
| Description | FIXED IND 33NH 400MA 350 MOHM |
| Series | AISC-Q0402 |
| productStatus | Active |
| typeConstruction | Wirewound |
| coreMaterial | Ceramic |
| shielding | Unshielded |
| qFactor | 24 @ 250MHz |
| selfResonantFreq | 2.35GHz |
| ratings | AEC-Q200 |
| testFrequency | 250 MHz |
| mountingType | - |
| supplierDevicePackage | 1008 (2520 Metric) |
| heightMax | 0.050" L x 0.030" W (1.27mm x 0.76mm) |
| features | 0.024" (0.61mm) |
