Description

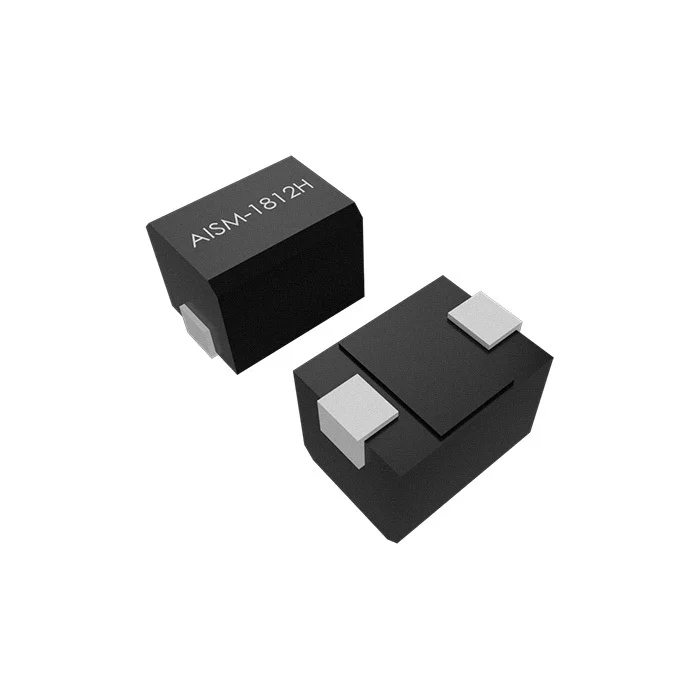

FIXED IND 2.2UH 850MA 180 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AISM-1812H-2R2M.
AISM-1812H-2R2M has an inductance value of 2.2 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AISM-1812H-2R2M is rated for 850 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AISM-1812H-2R2M lists a DC resistance of 180mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AISM-1812H-2R2M uses a package or case of Surface Mount. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AISM-1812H-2R2M to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating | 850 mA |
| DC Resistance (DCR) | 180mOhm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 1812 |
| Case / Size | Surface Mount |
| Package / Case | Surface Mount |
| Supplier | Abracon |
| Description | FIXED IND 2.2UH 850MA 180 MOHM |
| Series | AISM-1812H |
| Product Status | Obsolete |
| Type / Construction | Wirewound |
| Shielding | Shielded |
| Q @ Frequency | 10 @ 7.96MHz |
| Self Resonant Frequency | 65MHz |
| Inductance Test Frequency | 7.96 MHz |
| Supplier Device Package | 1812 (4532 Metric) |
| Height - Seated (Max) | 0.165" L x 0.126" W (4.20mm x 3.20mm) |
| Features | 0.134" (3.40mm) |
