Description

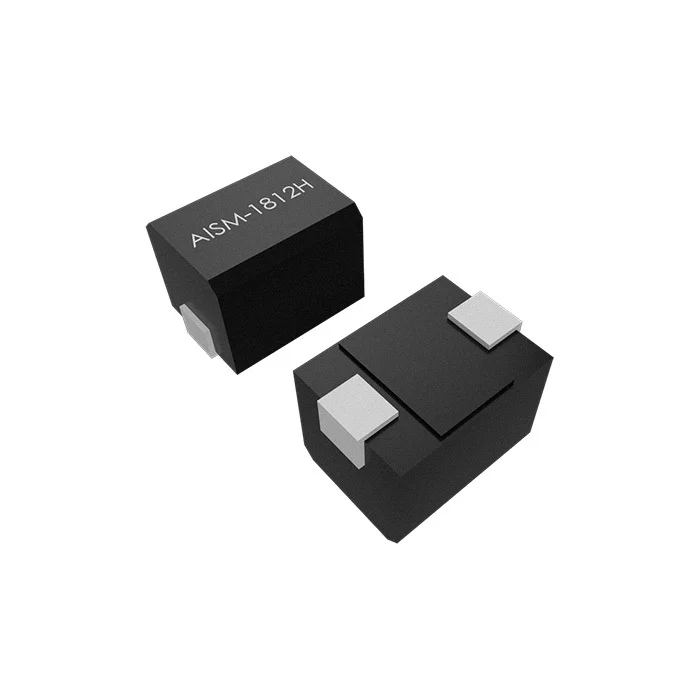

FIXED IND 330UH 90MA 13 OHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AISM-1812H-331M.
AISM-1812H-331M has an inductance value of 330 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AISM-1812H-331M is rated for 90 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AISM-1812H-331M lists a DC resistance of 13Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AISM-1812H-331M uses a package or case of Surface Mount. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AISM-1812H-331M to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 330 µH |
| Tolerance | ±20% |
| Current Rating | 90 mA |
| DC Resistance (DCR) | 13Ohm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 1812 |
| Case / Size | Surface Mount |
| Package / Case | Surface Mount |
| Supplier | Abracon |
| Description | FIXED IND 330UH 90MA 13 OHM SMD |
| Series | AISM-1812H |
| Product Status | Obsolete |
| Type / Construction | Wirewound |
| Shielding | Shielded |
| Q @ Frequency | 20 @ 796kHz |
| Self Resonant Frequency | 4MHz |
| Inductance Test Frequency | 796 kHz |
| Supplier Device Package | 1812 (4532 Metric) |
| Height - Seated (Max) | 0.165" L x 0.126" W (4.20mm x 3.20mm) |
| Features | 0.134" (3.40mm) |
