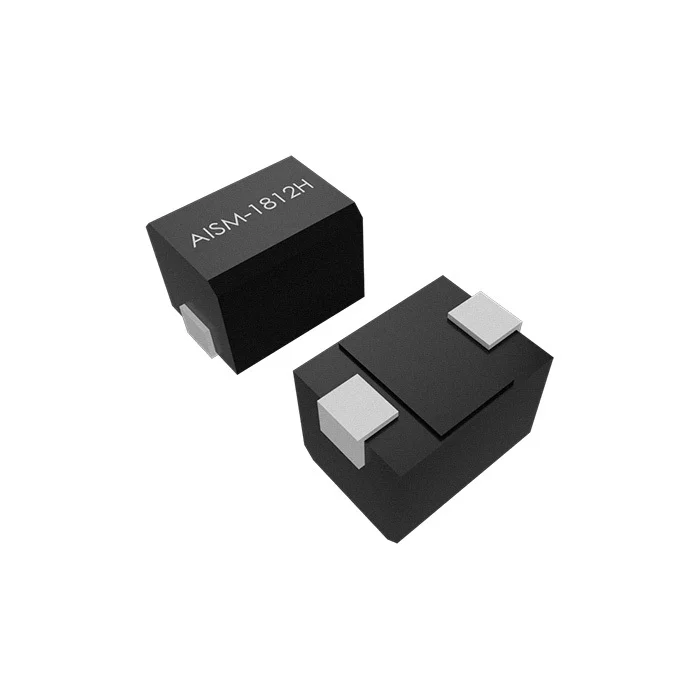

FIXED IND 56UH 240MA 2.2 OHM SMD
| Inductance | 56 µH |
| Tolerance | ±20% |
| Current Rating | 240 mA |
| DC Resistance (DCR) | 2.2Ohm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 1812 |
| Case / Size | Surface Mount |
| Supplier | Abracon |
| Description | FIXED IND 56UH 240MA 2.2 OHM SMD |
| Series | AISM-1812H |
| productStatus | Obsolete |
| typeConstruction | Wirewound |
| coreMaterial | - |
| shielding | Shielded |
| qFactor | 10 @ 2.52MHz |
| selfResonantFreq | 11MHz |
| ratings | - |
| testFrequency | 2.52 MHz |
| mountingType | - |
| supplierDevicePackage | 1812 (4532 Metric) |
| heightMax | 0.165" L x 0.126" W (4.20mm x 3.20mm) |
| features | 0.134" (3.40mm) |
