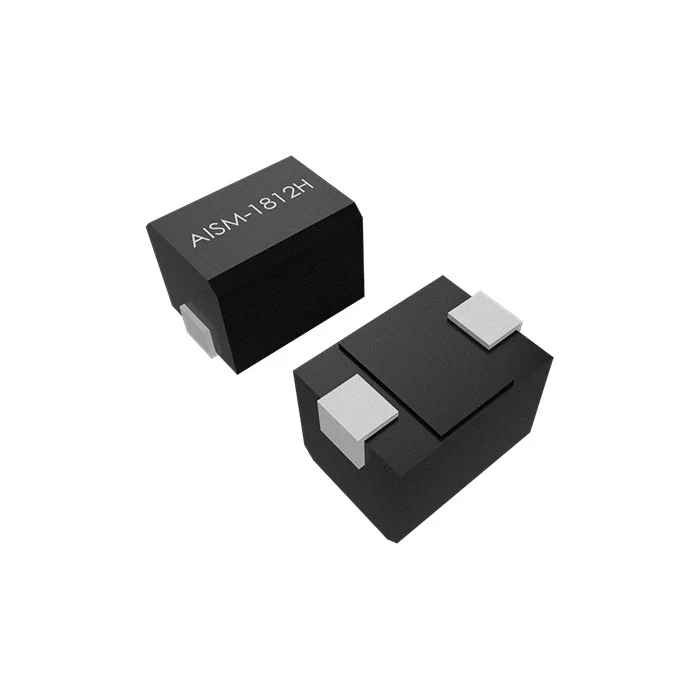

FIXED IND 6.8UH 600MA 350 MOHM
| Inductance | 6.8 µH |
| Tolerance | ±20% |
| Current Rating | 600 mA |
| DC Resistance (DCR) | 350mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 1812 |
| Case / Size | Surface Mount |
| Supplier | Abracon |
| Description | FIXED IND 6.8UH 600MA 350 MOHM |
| Series | AISM-1812H |
| productStatus | Obsolete |
| typeConstruction | Wirewound |
| coreMaterial | - |
| shielding | Shielded |
| qFactor | 10 @ 7.96MHz |
| selfResonantFreq | 28MHz |
| ratings | - |
| testFrequency | 7.96 MHz |
| mountingType | - |
| supplierDevicePackage | 1812 (4532 Metric) |
| heightMax | 0.165" L x 0.126" W (4.20mm x 3.20mm) |
| features | 0.134" (3.40mm) |
