Description
FIXED IND 560UH 360MA 1.72 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AISR-875-561L.
AISR-875-561L has an inductance value of 560 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AISR-875-561L is rated for 360 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AISR-875-561L lists a DC resistance of 1.72Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.

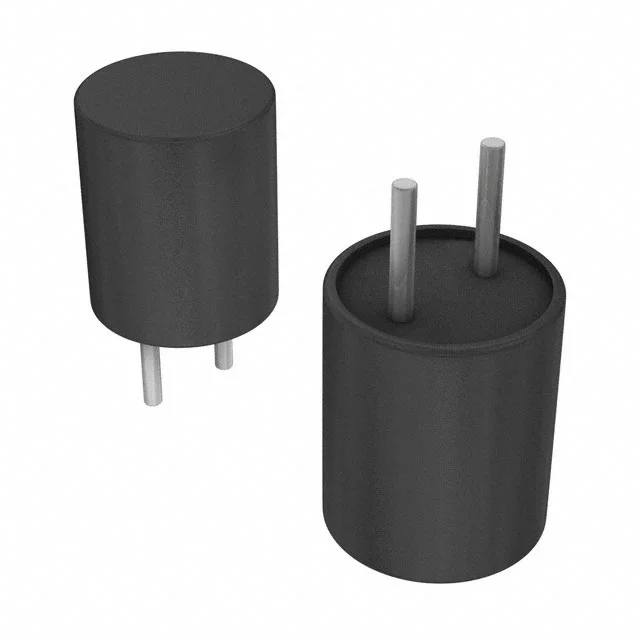

AISR-875-561L uses a package or case of Radial, Vertical Cylinder. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AISR-875-561L to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 560 µH |
| Tolerance | ±15% |
| Current Rating | 360 mA |
| DC Resistance (DCR) | 1.72Ohm Max |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.307" Dia (7.80mm) |
| Case / Size | Radial, Vertical Cylinder |
| Package / Case | Radial, Vertical Cylinder |
| Supplier | Abracon |
| Description | FIXED IND 560UH 360MA 1.72 OHM |
| Series | AISR-875 |
| Product Status | Obsolete |
| Type / Construction | Wirewound |
| Shielding | Shielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 0.295" (7.50mm) |
