Description

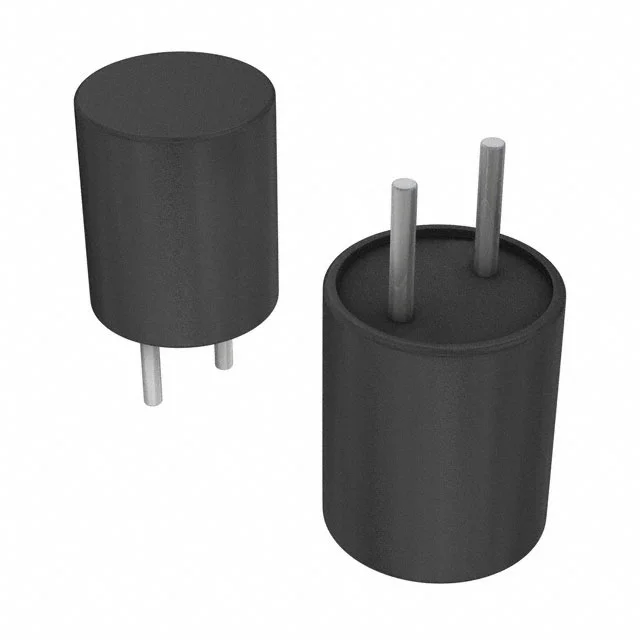

FIXED IND 820UH 300MA 2.56 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AISR-875-821L.
AISR-875-821L has an inductance value of 820 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AISR-875-821L is rated for 300 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AISR-875-821L lists a DC resistance of 2.56Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AISR-875-821L uses a package or case of Radial, Vertical Cylinder. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AISR-875-821L to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 820 µH |
| Tolerance | ±15% |
| Current Rating | 300 mA |
| DC Resistance (DCR) | 2.56Ohm Max |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.307" Dia (7.80mm) |
| Case / Size | Radial, Vertical Cylinder |
| Package / Case | Radial, Vertical Cylinder |
| Supplier | Abracon |
| Description | FIXED IND 820UH 300MA 2.56 OHM |
| Series | AISR-875 |
| Product Status | Obsolete |
| Type / Construction | Wirewound |
| Shielding | Shielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 0.295" (7.50mm) |
