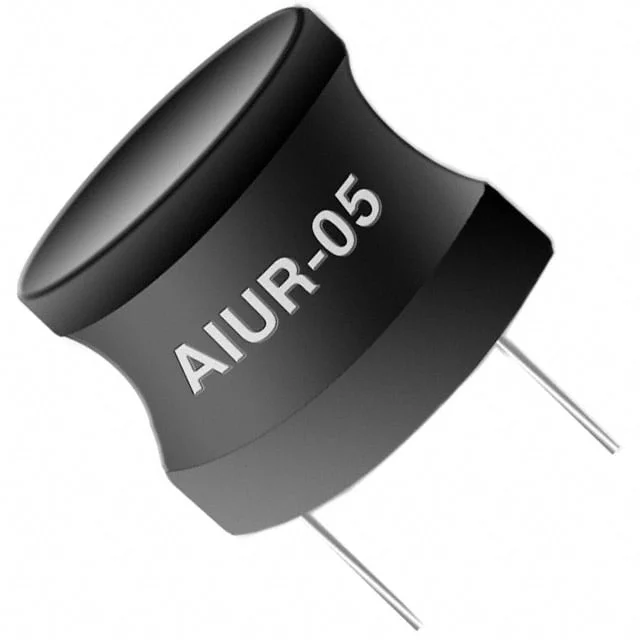

FIXED IND 15UH 1.4A 42 MOHM TH
| Inductance | 15 µH |
| Tolerance | ±10% |
| Current Rating | 1.4 A |
| DC Resistance (DCR) | 42mOhm Max |
| saturationCurrent | 2A |
| Operating Temperature | -25°C ~ 85°C |
| Dimensions | 0.335" Dia (8.50mm) |
| Case / Size | Radial, Vertical Cylinder |
| Supplier | Abracon |
| Description | FIXED IND 15UH 1.4A 42 MOHM TH |
| Series | AIUR-05 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 10 @ 2.52kHz |
| selfResonantFreq | 15MHz |
| ratings | - |
| testFrequency | 2.52 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | 0.354" (9.00mm) |
| features | - |
