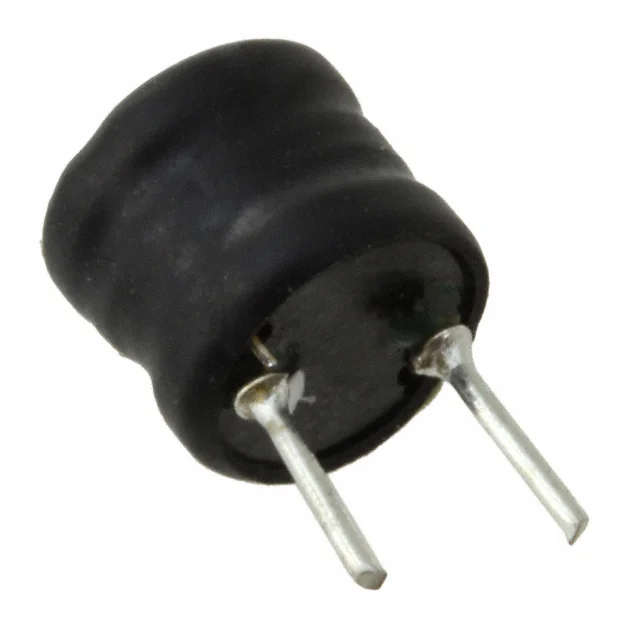

FIXED IND 47UH 900MA 130 MOHM TH
| Inductance | 47 µH |
| Tolerance | ±10% |
| Current Rating | 900 mA |
| DC Resistance (DCR) | 130mOhm Max |
| saturationCurrent | 1.1A |
| Operating Temperature | -25°C ~ 85°C |
| Dimensions | 0.335" Dia (8.50mm) |
| Case / Size | Radial, Vertical Cylinder |
| Supplier | Abracon |
| Description | FIXED IND 47UH 900MA 130 MOHM TH |
| Series | AIUR-05 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 10 @ 2.52kHz |
| selfResonantFreq | 8.2MHz |
| ratings | - |
| testFrequency | 2.52 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | 0.354" (9.00mm) |
| features | - |
