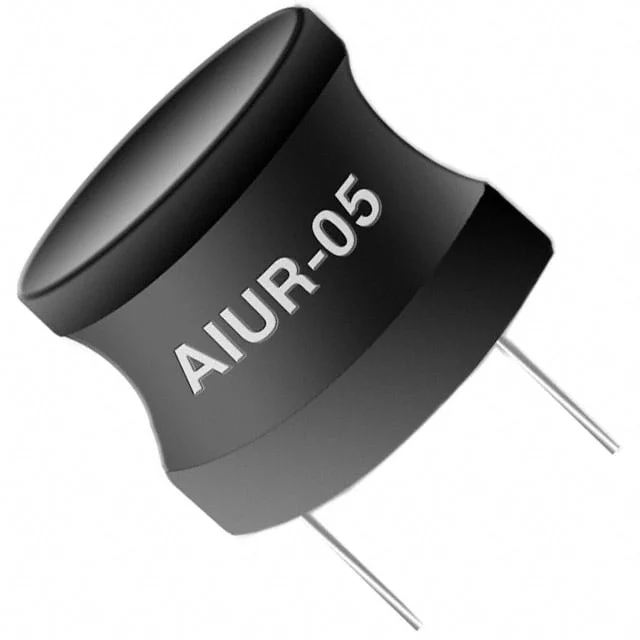

FIXED IND 4.7UH 2.7A 17 MOHM TH
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating | 2.7 A |
| DC Resistance (DCR) | 17mOhm Max |
| saturationCurrent | 3.7A |
| Operating Temperature | -25°C ~ 85°C |
| Dimensions | - |
| Case / Size | Through Hole |
| Supplier | Abracon |
| Description | FIXED IND 4.7UH 2.7A 17 MOHM TH |
| Series | AIUR-05 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 10 @ 7.96kHz |
| selfResonantFreq | 30MHz |
| ratings | - |
| testFrequency | 7.96 kHz |
| mountingType | - |
| supplierDevicePackage | Radial, Vertical Cylinder |
| heightMax | 0.335" Dia (8.50mm) |
| features | 0.354" (9.00mm) |
