Description

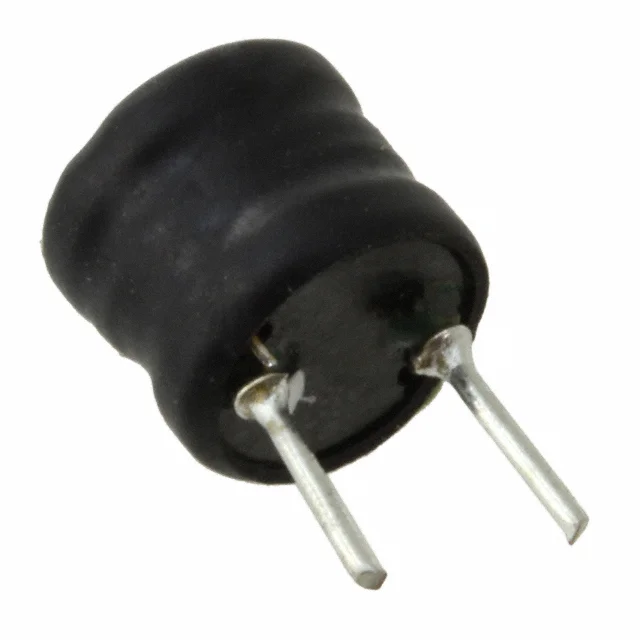

FIXED IND 68UH 630MA 160 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AIUR-05-680K.
AIUR-05-680K has an inductance value of 68 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AIUR-05-680K is rated for 630 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AIUR-05-680K lists a DC resistance of 160mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AIUR-05-680K uses a package or case of Radial, Vertical Cylinder. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AIUR-05-680K to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 68 µH |
| Tolerance | ±10% |
| Current Rating | 630 mA |
| DC Resistance (DCR) | 160mOhm Max |
| Saturation Current | 910mA |
| Operating Temperature | -25°C ~ 85°C |
| Dimensions | 0.335" Dia (8.50mm) |
| Case / Size | Radial, Vertical Cylinder |
| Package / Case | Radial, Vertical Cylinder |
| Supplier | Abracon |
| Description | FIXED IND 68UH 630MA 160 MOHM TH |
| Series | AIUR-05 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | 10 @ 2.52kHz |
| Self Resonant Frequency | 6.6MHz |
| Inductance Test Frequency | 2.52 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 0.354" (9.00mm) |
