Description

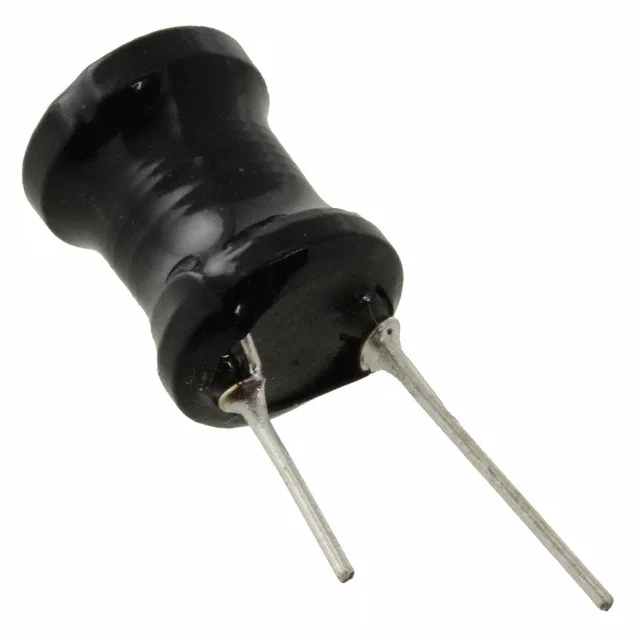

FIXED IND 12MH 130MA 14.5 OHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AIUR-06-123K.
AIUR-06-123K has an inductance value of 12 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AIUR-06-123K is rated for 130 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AIUR-06-123K lists a DC resistance of 14.5Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AIUR-06-123K uses a package or case of Through Hole. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AIUR-06-123K to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 12 mH |
| Tolerance | ±10% |
| Current Rating | 130 mA |
| DC Resistance (DCR) | 14.5Ohm Max |
| Saturation Current | 250mA |
| Operating Temperature | -25°C ~ 85°C |
| Case / Size | Through Hole |
| Package / Case | Through Hole |
| Supplier | Abracon |
| Description | FIXED IND 12MH 130MA 14.5 OHM TH |
| Series | AIUR-06 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 1 kHz |
| Supplier Device Package | Radial, Vertical Cylinder |
| Height - Seated (Max) | 0.500" Dia (12.70mm) |
| Features | 0.710" (18.03mm) |
