Description

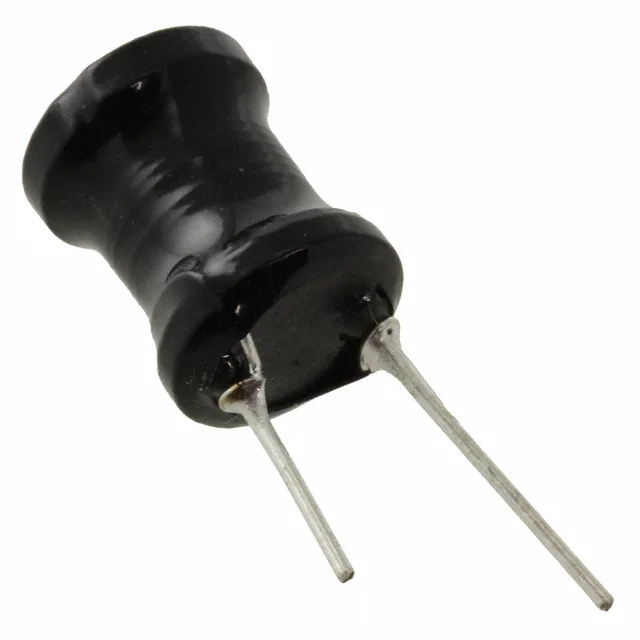

FIXED IND 15MH 100MA 20.5 OHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AIUR-06-153K.
AIUR-06-153K has an inductance value of 15 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AIUR-06-153K is rated for 100 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AIUR-06-153K lists a DC resistance of 20.5Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AIUR-06-153K uses a package or case of Radial, Vertical Cylinder. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AIUR-06-153K to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 15 mH |
| Tolerance | ±10% |
| Current Rating | 100 mA |
| DC Resistance (DCR) | 20.5Ohm Max |
| Saturation Current | 230mA |
| Operating Temperature | -25°C ~ 85°C |
| Dimensions | 0.500" Dia (12.70mm) |
| Case / Size | Radial, Vertical Cylinder |
| Package / Case | Radial, Vertical Cylinder |
| Supplier | Abracon |
| Description | FIXED IND 15MH 100MA 20.5 OHM TH |
| Series | AIUR-06 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 0.710" (18.03mm) |
