Description

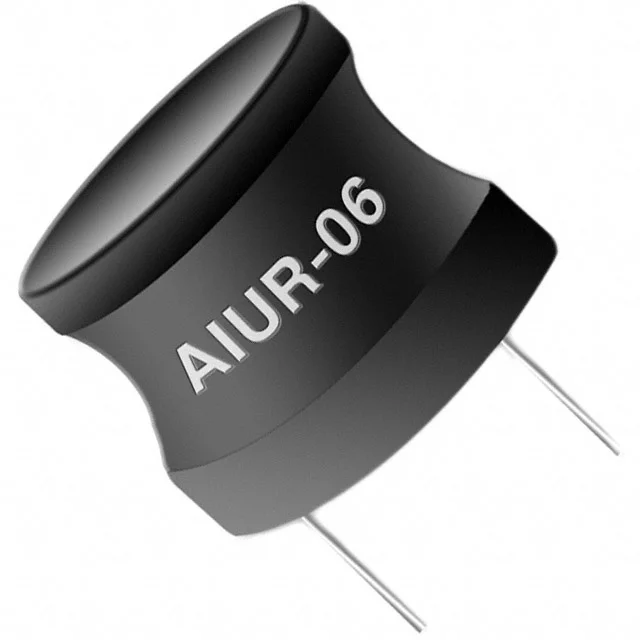

FIXED IND 1.8MH 460MA 1.8 OHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AIUR-06-182K.
AIUR-06-182K has an inductance value of 1.8 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AIUR-06-182K is rated for 460 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AIUR-06-182K lists a DC resistance of 1.8Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AIUR-06-182K uses a package or case of Radial, Vertical Cylinder. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AIUR-06-182K to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 1.8 mH |
| Tolerance | ±10% |
| Current Rating | 460 mA |
| DC Resistance (DCR) | 1.8Ohm Max |
| Saturation Current | 660mA |
| Operating Temperature | -25°C ~ 85°C |
| Dimensions | 0.500" Dia (12.70mm) |
| Case / Size | Radial, Vertical Cylinder |
| Package / Case | Radial, Vertical Cylinder |
| Supplier | Abracon |
| Description | FIXED IND 1.8MH 460MA 1.8 OHM TH |
| Series | AIUR-06 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 0.710" (18.03mm) |
