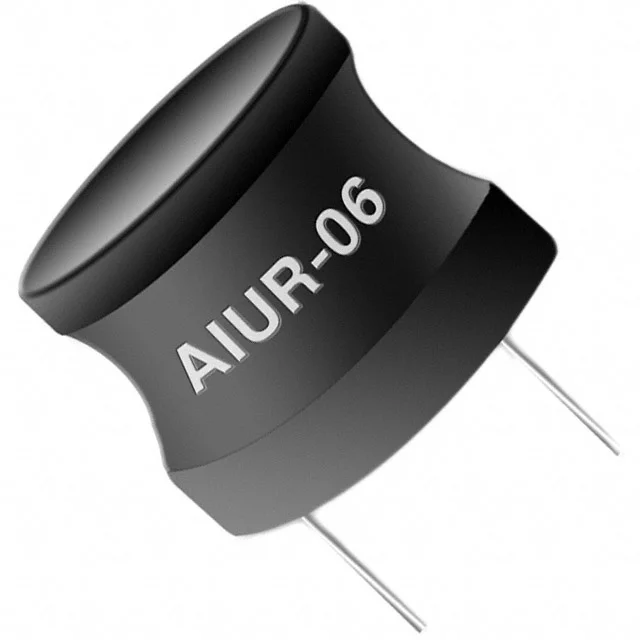

FIXED IND 5.6UH 5.9A 21 MOHM TH
| Inductance | 5.6 µH |
| Tolerance | ±10% |
| Current Rating | 5.9 A |
| DC Resistance (DCR) | 21mOhm Max |
| saturationCurrent | 11A |
| Operating Temperature | -25°C ~ 85°C |
| Dimensions | - |
| Case / Size | Through Hole |
| Supplier | Abracon |
| Description | FIXED IND 5.6UH 5.9A 21 MOHM TH |
| Series | AIUR-06 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | - |
| supplierDevicePackage | Radial, Vertical Cylinder |
| heightMax | 0.500" Dia (12.70mm) |
| features | 0.710" (18.03mm) |
